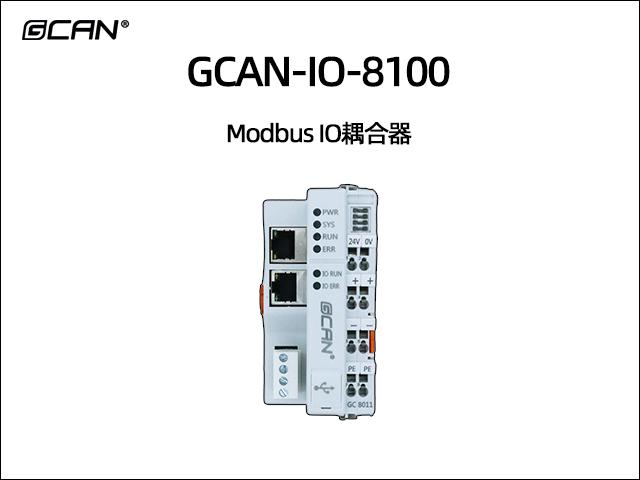

1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

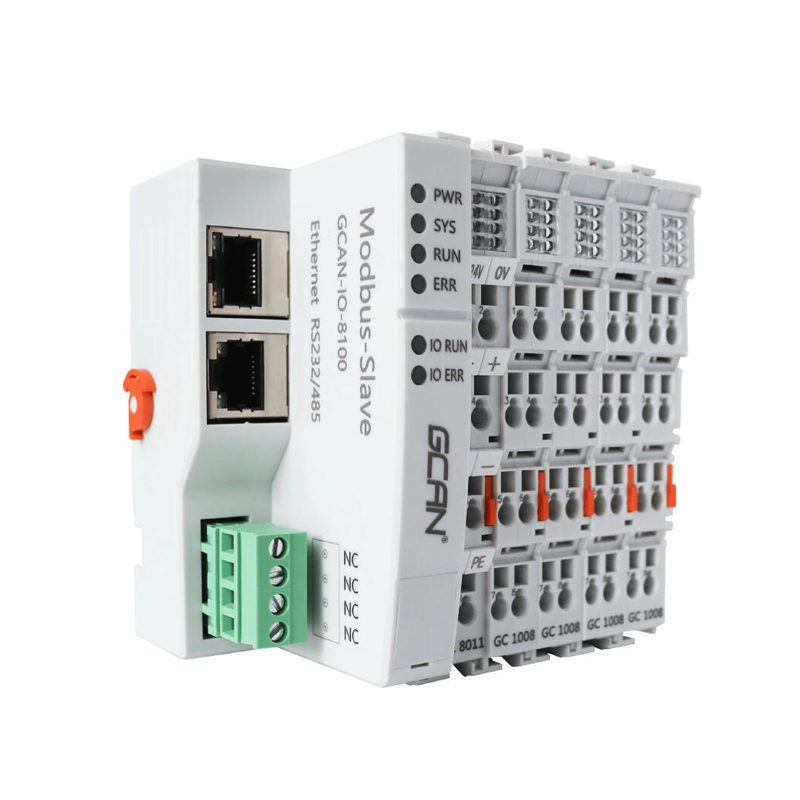

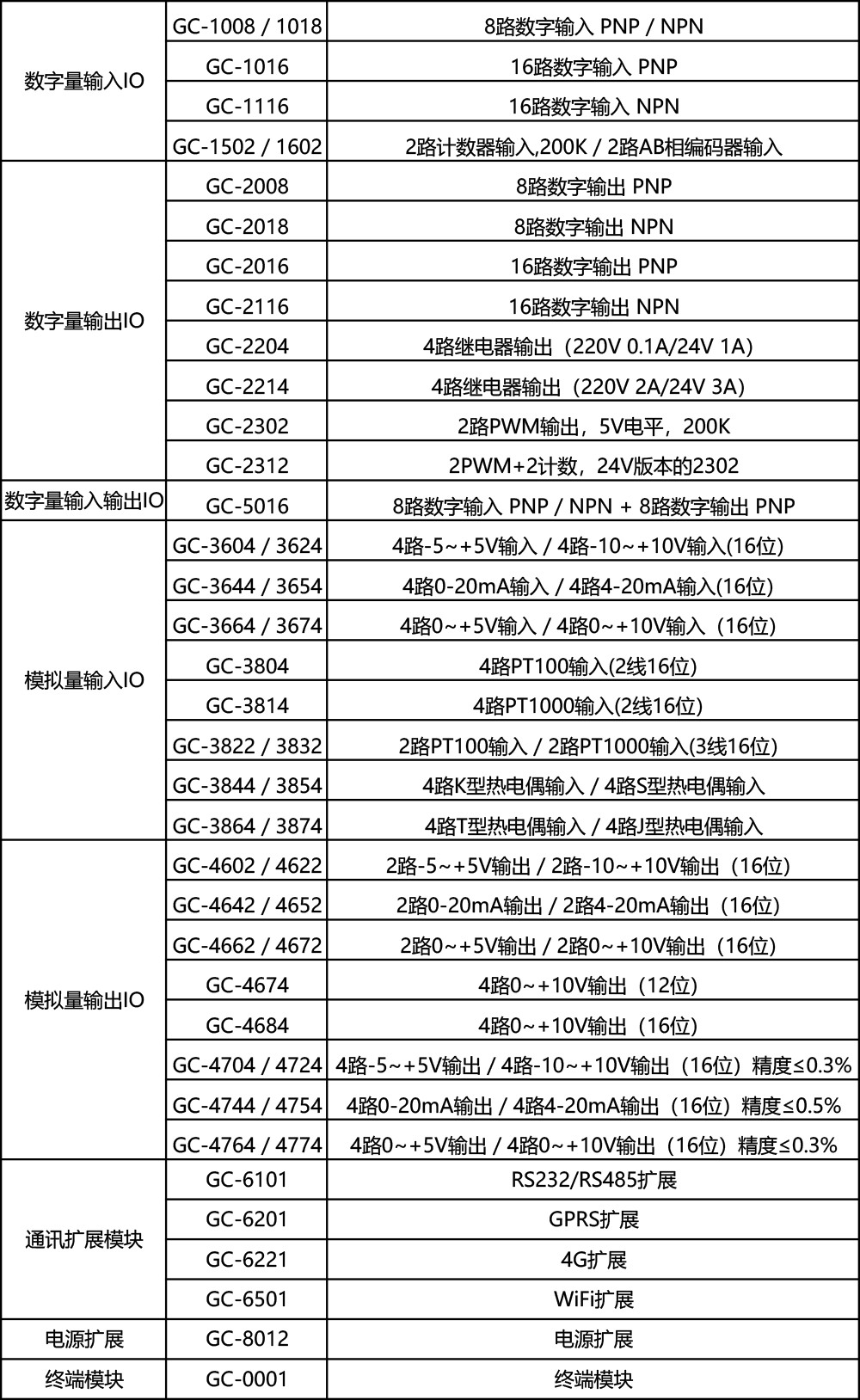

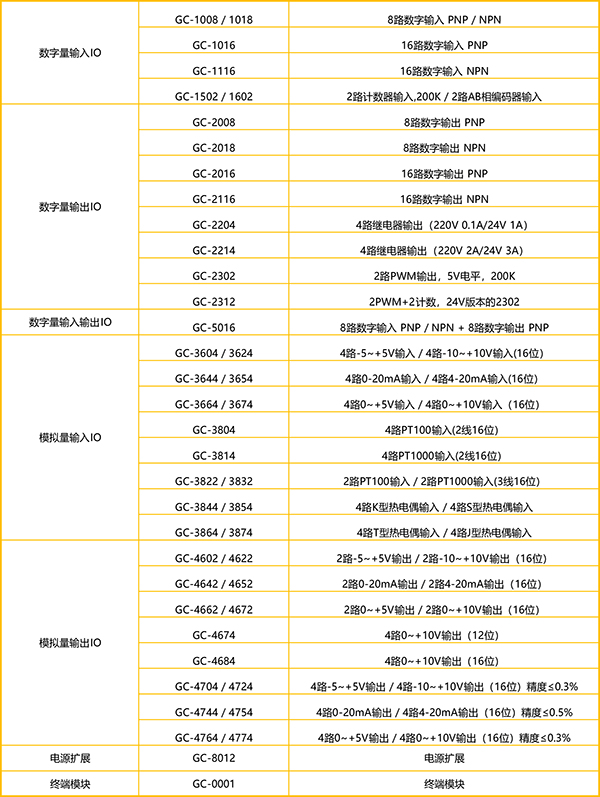

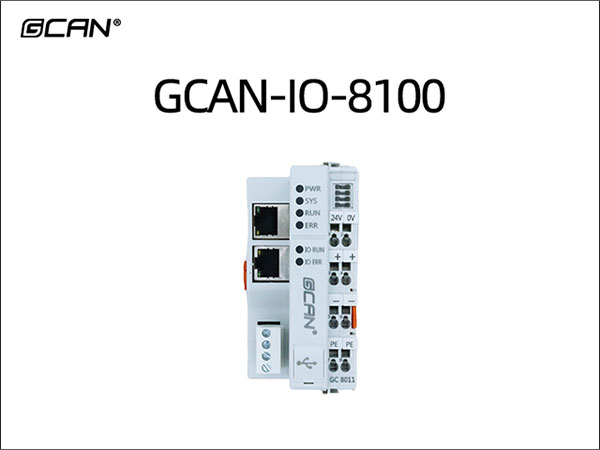

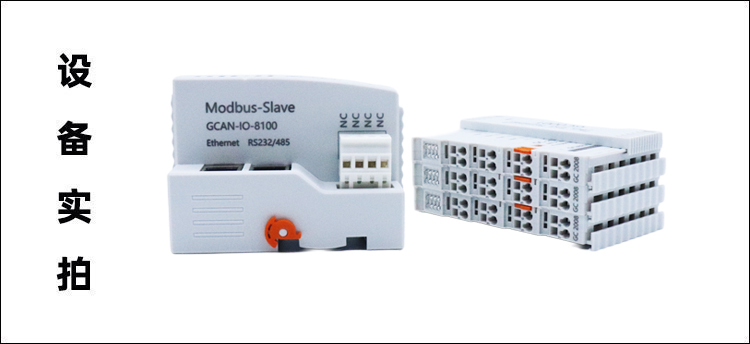

GCAN-8100 Modbus总线耦合器可以用于连接Modbus总线系统与分布式总线端子模块，这些端子模块可以通过模块化的方式进行扩展。一个完整的节点由一个总线耦合器、1-32个任意数量的端子模块以及一个终端端子模块组成，其中当扩展模块数量超过16片时，需额外增加一片IO供电扩展模块GC 8012以保证电源供应充足。GCAN-8100总线耦合器通过GC-bus扩展技术，最多可连接32个输入/输出端子模块。
The GCAN-8100 Modbus bus coupler can be used to connect Modbus bus systems with distributed bus terminal modules, which can be expanded in a modular manner. A complete node consists of a bus coupler, 1-32 terminal modules of any number, and one terminal module. When the number of expansion modules exceeds 16, an additional IO powered expansion module GC 8012 needs to be added to ensure sufficient power supply. The GCAN-8100 bus coupler can connect up to 32 input/output terminal modules through GC bus expansion technology.

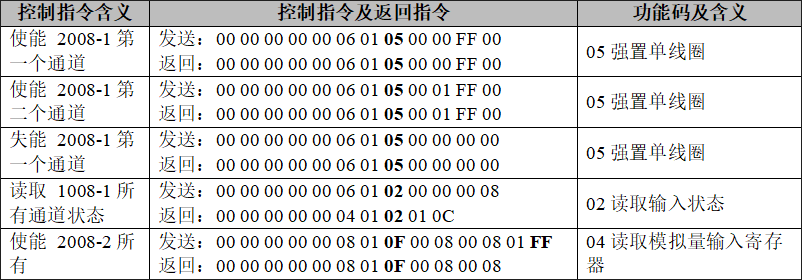

GCAN-8100 Modbus总线耦合器采用标准的Modbus总线协议，是一个标准的Modbus从站设备。支持modbus TCP与modbus RTU。除此之外，通过网口还可以对固件进行升级，以满足客户的定制化需求。
The GCAN-8100 Modbus bus coupler adopts the standard Modbus bus protocol and is a standard Modbus slave device. Supports Modbus TCP and Modbus RTU. In addition, firmware can be upgraded through the network port to meet customers' customized needs.

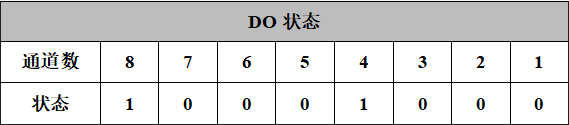

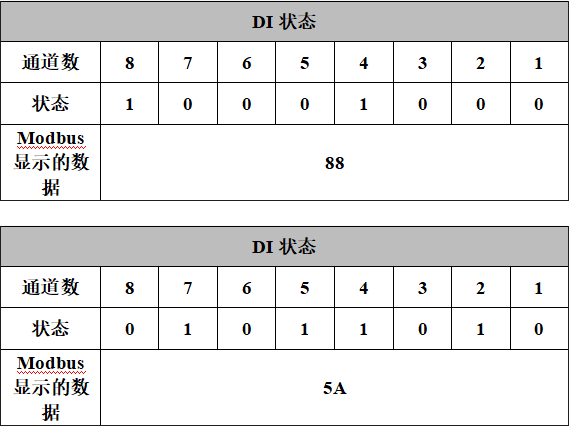

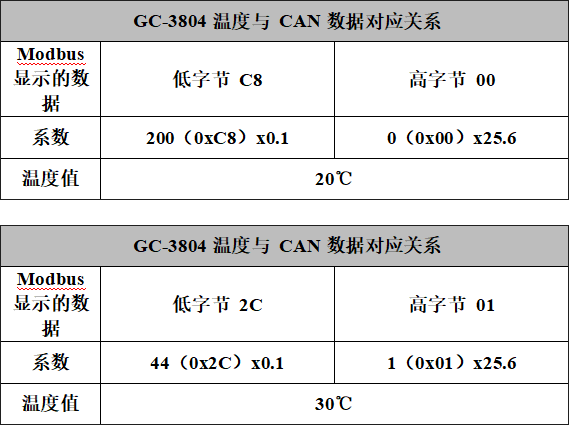

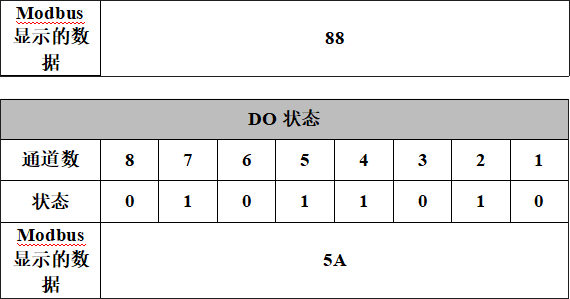

GCAN-8100总线耦合器可连接所有的总线端子模块。就用户而言，模拟量输入/输出信号的处理方式与其它种类信号的处理方式没有任何区别。控制器过程映像区内的信息映射到modbus的4个寄存器中。
The GCAN-8100 bus coupler can connect all bus terminal modules. As far as users are concerned, the processing method of analog input/output signals is no different from that of other types of signals. The information in the controller process image area is mapped to four registers of Modbus.

GCAN-8100总线耦合器支持自动组态，您无需在PC上设置组态。GCAN-8100总线耦合器通信参数可通过RS-232接口进行配置。
The GCAN-8100 bus coupler supports automatic configuration, so you don't need to configure it on your PC. The communication parameters of the GCAN-8100 bus coupler can be configured through the RS-232 interface.

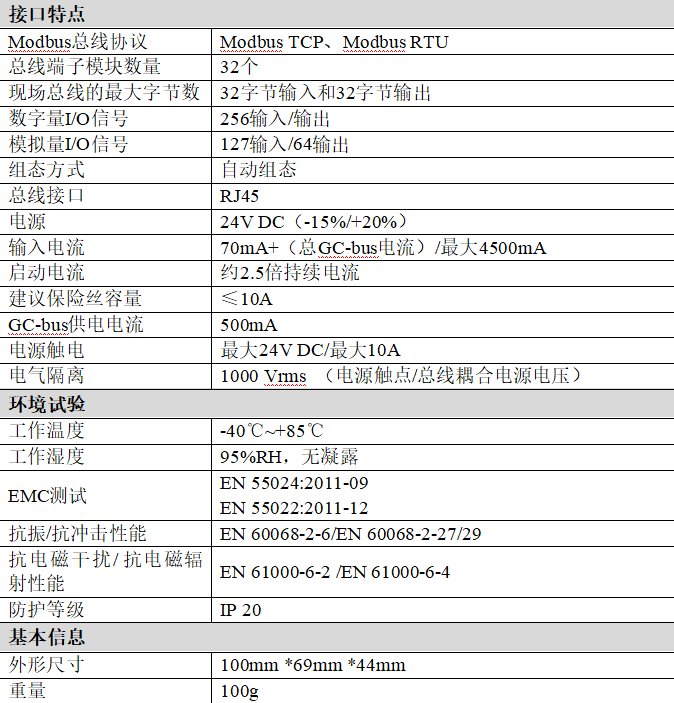

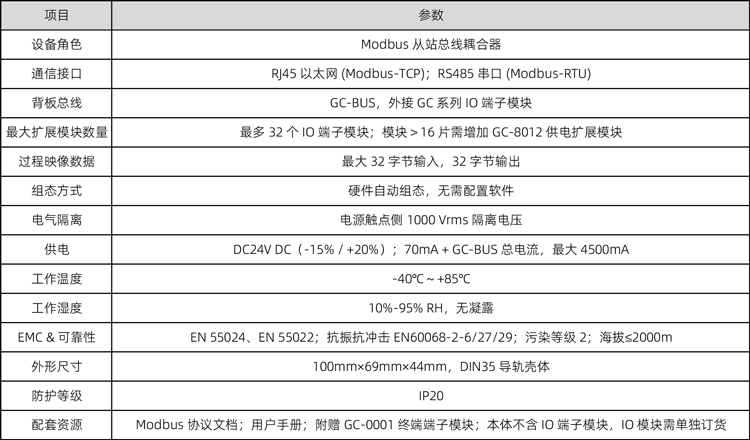

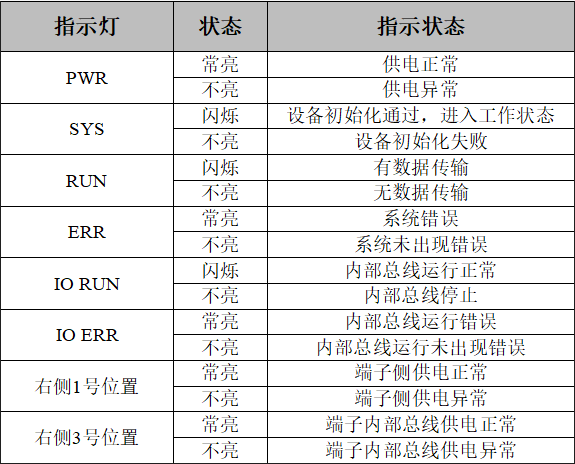

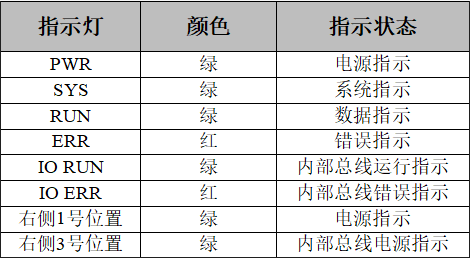

1.2性能特点
1.2 Performance Characteristics

●支持标准Modbus协议，是一个标准的Modbus从站设备；
●Supports the standard Modbus protocol and is a standard Modbus slave device;
●支持Modbus TCP、Modbus RTU通讯；
● Supports Modbus TCP and Modbus RTU communication;

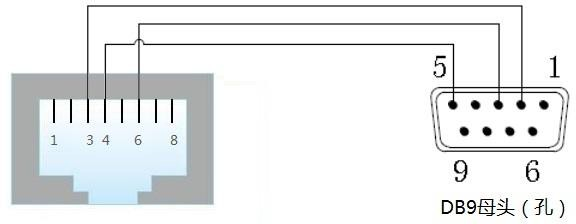

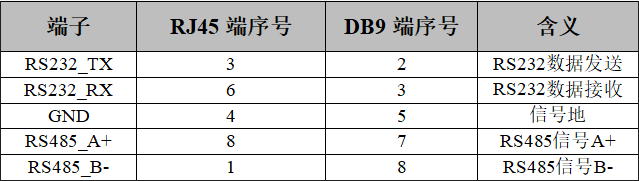

●RS485接口采用标准2线制；RS232接口采用标准3线制；
●The RS485 interface adopts a standard 2-wire system; The RS232 interface adopts a standard 3-wire system;
●串口波特率支持600bps~115200bps之间，可通过串口配置；
●The serial port baud rate supports between 600bps and 115200bps and can be configured through the serial port;
●在电源供应充足（加扩展电源模块）情况下可扩展IO模块数量最多为32个（最多32x8个DI/DO点）；其中当扩展模块数量超过16片时，需额外增加一片上述的IO供电扩展模块GC 8012以保证电源供应充足；
●The maximum number of expandable IO modules (up to 32x8 DI/DO points) is 32 when the power supply is sufficient (with additional expansion power modules); When the number of expansion modules exceeds 16, an additional IO powered expansion module GC 8012 needs to be added to ensure sufficient power supply;
●组态方式为自动组态形式，可自由扩展；
●The configuration mode is automatic and can be freely expanded;
●以太网口支持静态获取；
●The Ethernet port supports static acquisition;
●以太网口支持超时断开功能；
●The Ethernet port supports timeout disconnection function;
●以太网口网络断开后自动恢复连接资源，可靠地建立TCP连接；
●Automatically restore connection resources and reliably establish TCP connections after Ethernet port network disconnection;

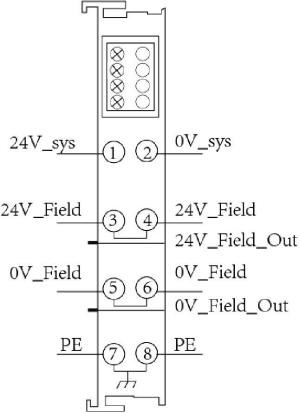

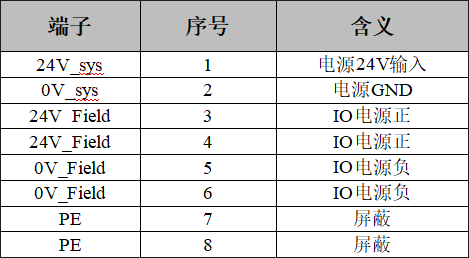

●电源采用24V DC（-15%/+20%）；
●The power supply adopts 24V DC (-15%/+20%);
●输入电流为70mA+（总GC-bus电流），最大为4500mA；
●The input current is 70mA+(total GC bus current), with a maximum of 4500mA;
●启动电流：约为2.5倍的持续电流；
● Starting current: approximately 2.5 times the continuous current;
●电源供电：最大24V DC/最大10A；
●Power supply: maximum 24V DC/maximum 10A;
●电气隔离为1000 Vrms（电源触点/总线耦合电源电压）；
●Electrical isolation is 1000 Vrms (power contact/bus coupling power supply voltage);
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;

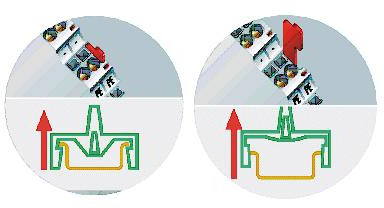

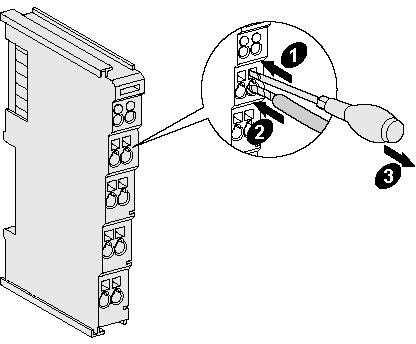

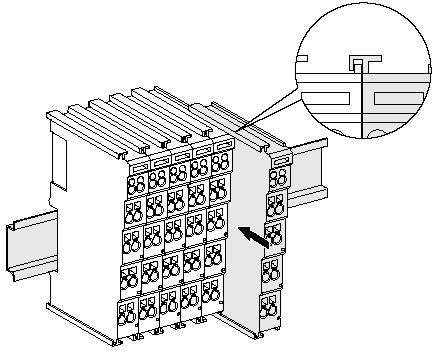

●标准DIN导轨安装方式，专为工业设计。
●Standard DIN rail installation method, specifically designed for industrial use.
●尺寸：长100mm*宽69mm*高48mm。
●Size: Length 100mm * Width 69mm * Height 48mm.

1.3典型应用
1.3 Typical Applications

●与分布式总线端子模块相连接，构成一个完整的控制节点；
●Connect with the distributed bus terminal module to form a complete control node;
●执行数据采集并以Modbus协议进行数据传输。
●Perform data collection and transmit data using Modbus protocol.

GCAN-IO-8100设备使用手册链接
GCAN-IO-8100 Equipment User Manual Link

www.gcgd.net/filedownload/2977878
