1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

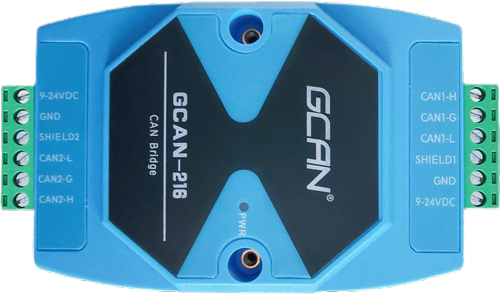

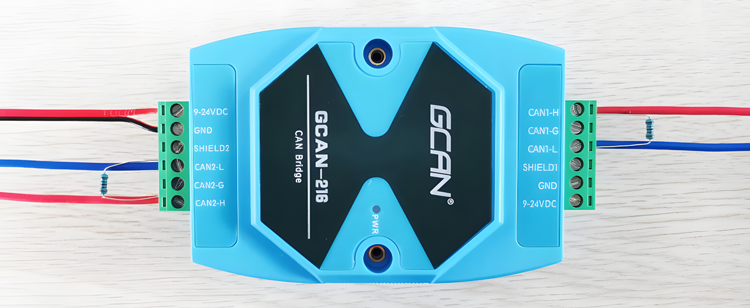

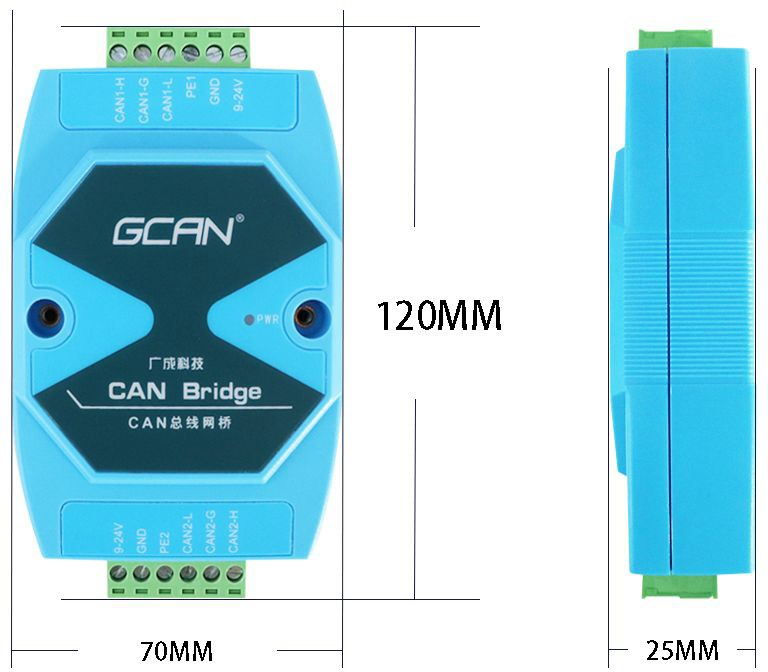

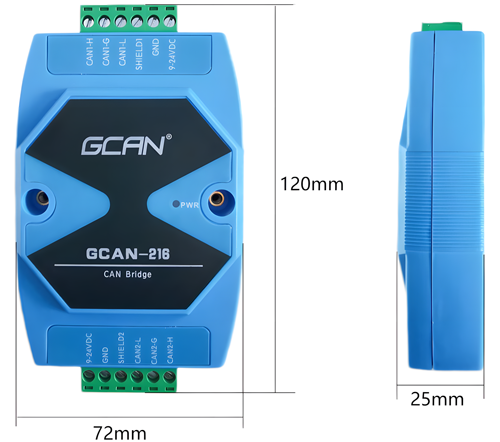

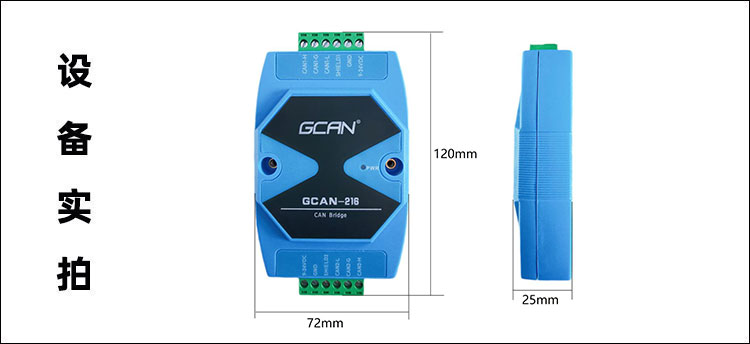

GCAN-216模块是集成2路CAN接口的高性能型CAN总线通讯隔离模块。
The GCAN-216 module is a high-performance CAN bus communication isolation module that integrates two CAN interfaces.
GCAN-216模块高性能CAN接口卡，可支持波特率范围10K-500K，无需设置，操作简单便捷。
GCAN-216 module high-performance CAN interface card, can support baud rate range of 10K-500K, no need to set, simple and convenient operation.
GCAN-216模块是隔离CAN总线网络的高性能工具，同时具有体积小巧、即插即用等特点，也是便携式系统用户的最佳选择。GCAN-216模块集成CAN接口电气隔离保护模块，使其避免由于瞬间过流/过压而对设备造成损坏，增强系统在恶劣环境中使用的可靠性。
The GCAN-216 module is a high-performance tool for isolating CAN bus networks, with features such as small size and plug and play, making it the best choice for portable system users. The GCAN-216 module integrates a CAN interface electrical isolation protection module to prevent equipment damage caused by transient overcurrent/overvoltage, enhancing the reliability of the system in harsh environments.
GCAN-216设备不能作为一个独立的CAN节点设备存在。
The GCAN-216 device cannot exist as an independent CAN node device.

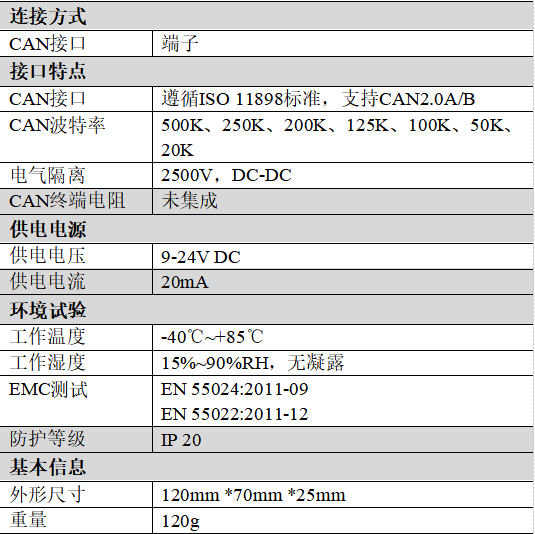

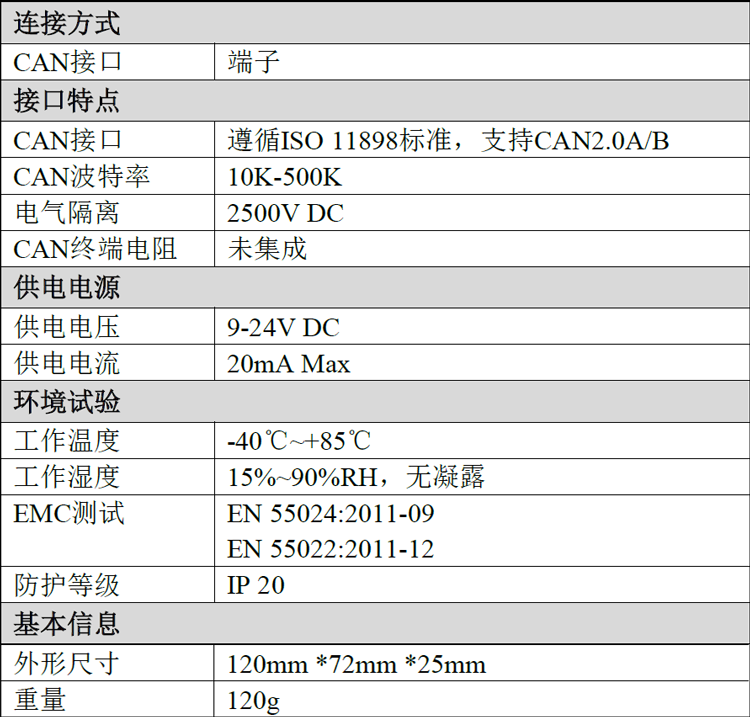

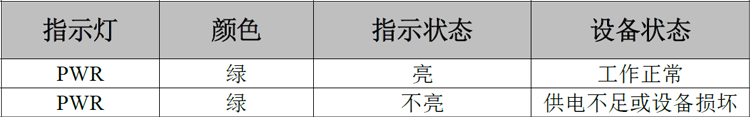

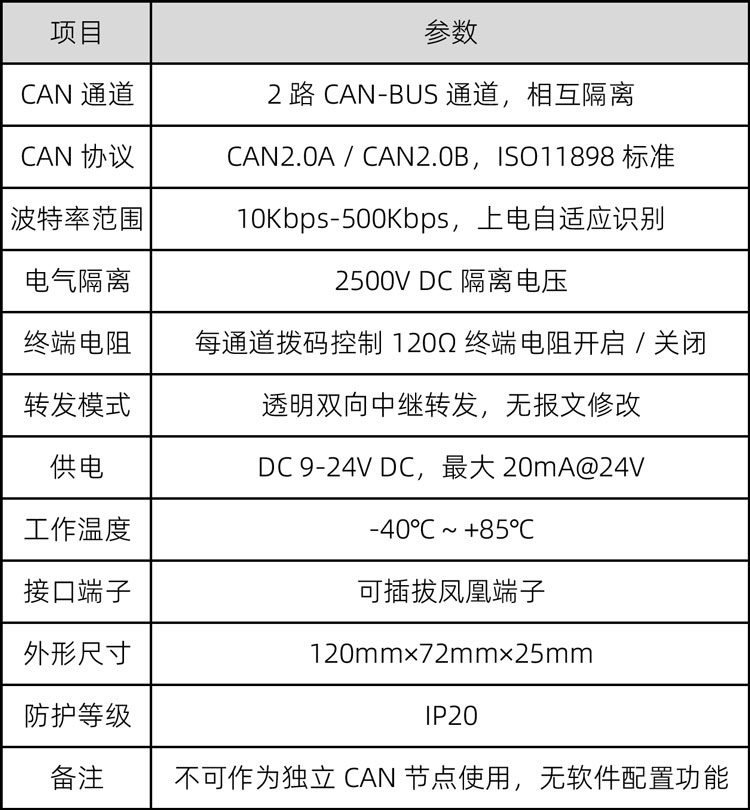

1.2性能特点
1.2 Performance Characteristics

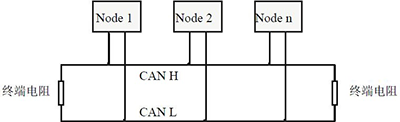

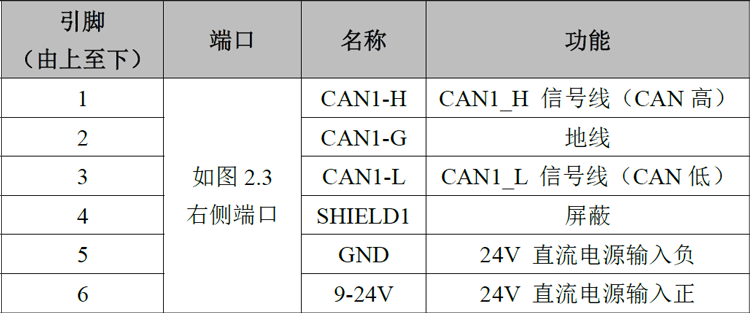

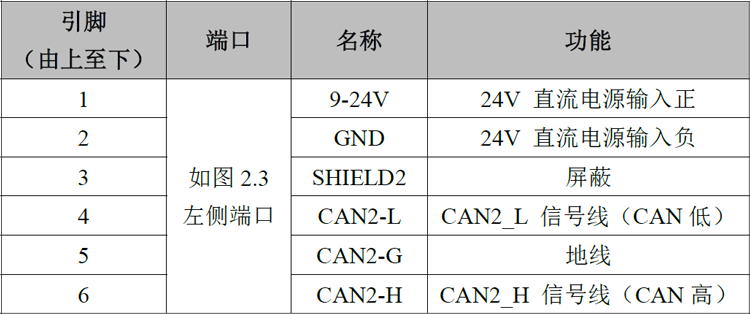

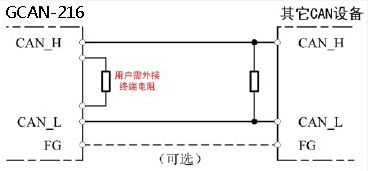

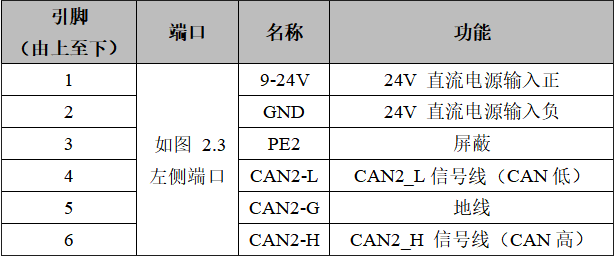

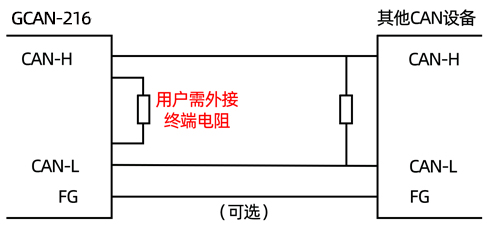

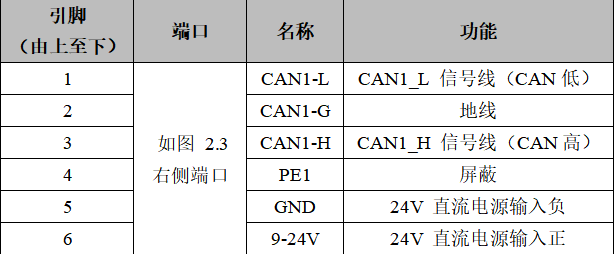

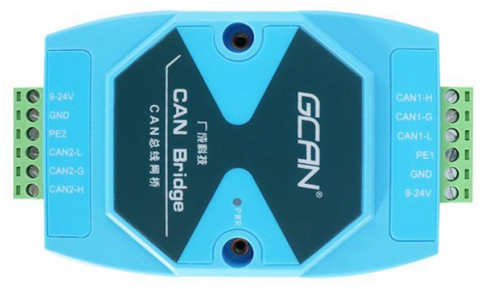

●集成2路CAN-bus接口，使用凤凰端子接线方式；
● Integrate 2 CAN bus interfaces and use Phoenix terminal wiring method;
●支持CAN2.0A和CAN2.0B帧格式，符合ISO/DIS 11898规范；
Supports CAN2.0A and CAN2.0B frame formats, compliant with ISO/DIS 11898 specifications;
●CAN-bus通讯波特率在10Kbps~500Kbps之间；
The CAN bus communication baud rate is between 10Kbps and 500kbps;

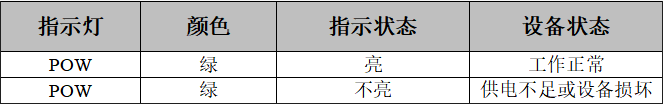

●使用外接电源(9-24V DC)；
● Use an external power supply (9-24V DC);
●CAN-bus接口采用电气隔离，隔离模块绝缘电压：2500V DC；
The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is 2500V DC;
●供电电流：20mA Max；
Power supply current: 20mA Max;
●功率：典型值0.25W（24V DC；25℃）
Power: Typical value 0.25W (24V DC; 25 ℃)
●工作温度范围：-40℃~+85℃；
Working temperature range: -40 ℃~+85 ℃;
●静电放电抗扰度等级：接触放电±4KV，空气放电±8KV；
Static discharge immunity level: Contact discharge ± 4KV, air discharge ± 8KV;
●电快速瞬变脉冲群抗扰度等级：±2KV；
● Electrical fast transient burst immunity level: ± 2KV;
●浪涌抗扰度等级：电源接口±1KV，CAN总线接口±4KV；
Surge immunity level: ± 1KV for power interface, ± 4KV for CAN bus interface;

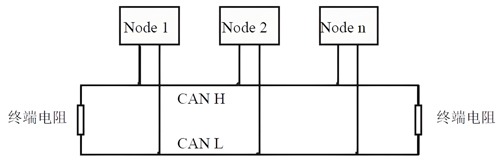

1.3典型应用
1.3 Typical Applications

●汽车电子网络
● Automotive electronic network
●电力通讯网络
● Power communication network
●工业控制网络
Industrial control network

GCAN-216设备使用手册链接
GCAN-216 Equipment User Manual Link

www.gcgd.net/filedownload/2977772
