1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

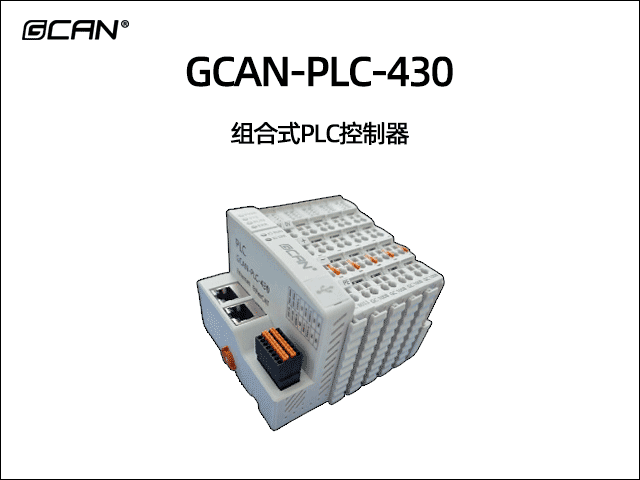

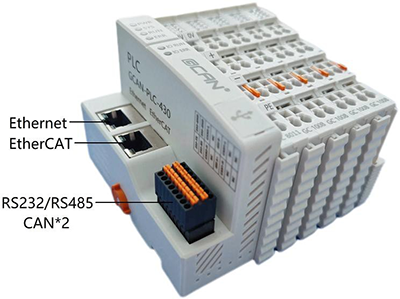

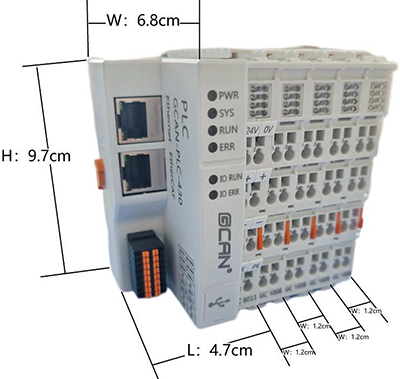

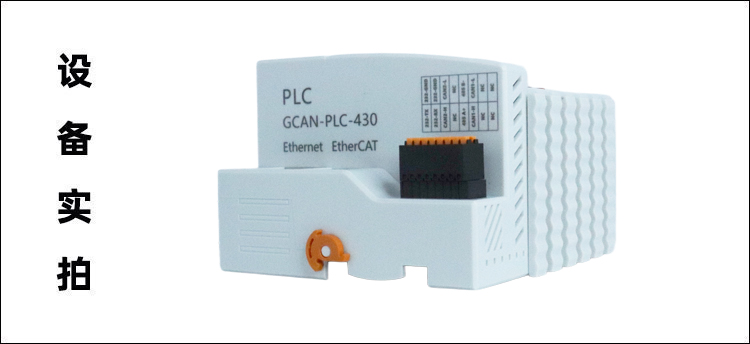

GCAN-PLC-430是集成有总线控制功能的、带EtherCAT主站控制的可编程逻辑控制器（PLC）。其不仅具有外观简约、高性价比的特点，还可以方便的连接入CAN总线系统及Modbus系统等，并可通过插片式IO模块进行扩展。
GCAN-PLC-430 is a programmable logic controller (PLC) with integrated bus control function and EtherCAT master control. It not only has the characteristics of simple appearance and high cost-effectiveness, but also can be easily connected to CAN bus systems and Modbus systems, and can be expanded through plug-in IO modules.

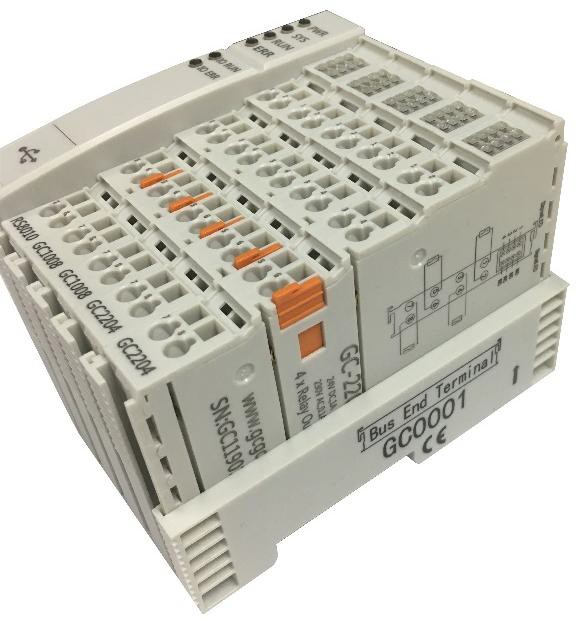

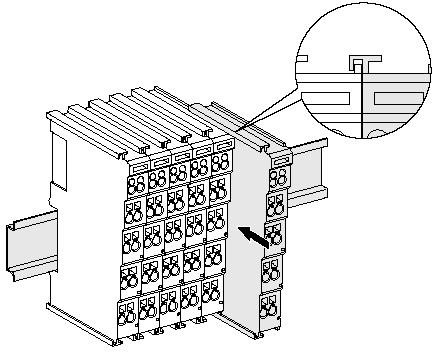

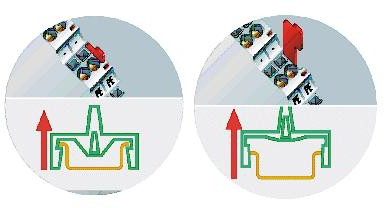

GCAN-PLC-430产品由一个可编程的主控模块、若干GC系列IO模块（GC-1008、GC-2008等）以及一个终端电阻模块组成。GCAN-PLC-430主控模块可连接所有的GC系列IO模块，用户可根据现场实际需求自行选择扩展IO模块，IO模块数量最多可扩展32个，主控模块可根据插入IO模块的前后位置自动分配地址，实现自动组态。
The GCAN-PLC-430 product consists of a programmable main control module, several GC series IO modules (GC-1008, GC-2008, etc.), and a terminal resistor module. The GCAN-PLC-430 main control module can connect all GC series IO modules, and users can choose to expand IO modules according to their actual needs on site. The maximum number of IO modules can be expanded by 32, and the main control module can automatically allocate addresses according to the front and rear positions of the inserted IO modules, achieving automatic configuration.

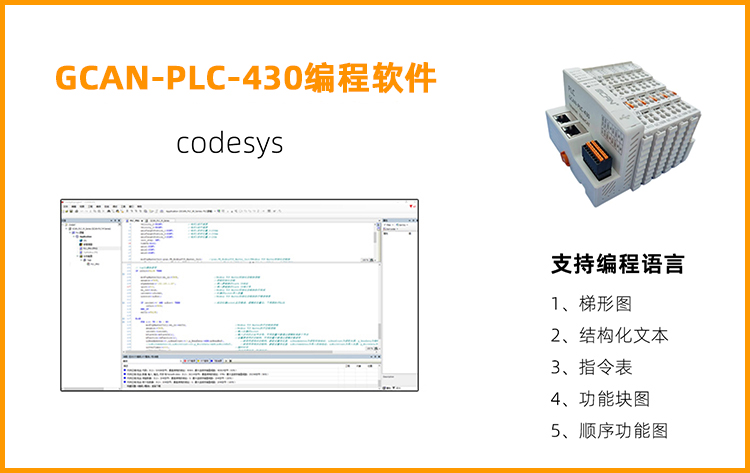

GCAN-PLC-430可使用OpenPCS软件对其编程，也可使用CodeSys V3.5SP16及以上版本软件对其编程。软件支持符合IEC-61131-3标准中规定的五种标准编程语言，这使得程序的可移植性和复用性很强，而且软件还具有多种调试功能（断点、单步等），调试程序更加方便。
GCAN-PLC-430 can be programmed using OpenPCS software or CodeSys V3.5SP16 and above software versions. The software supports five standard programming languages specified in the IEC-61131-3 standard, which makes the program highly portable and reusable. Additionally, the software has multiple debugging functions (breakpoints, single steps, etc.), making debugging programs more convenient.

GCAN-PLC-430不仅可完成各种数字/模拟量的输入/输出，还集成了多种常用的工业现场总线，如：CAN总线、485总线、232总线、以太网总线、EtherCAT总线，并支持常见的通信协议如：CANopen、ModbusRTU、ModbusTCP、EtherCAT等。
GCAN-PLC-430 not only can complete various digital/analog input/output, but also integrates multiple commonly used industrial field buses, such as CAN bus, 485 bus, 232 bus, Ethernet bus, EtherCAT bus, and supports common communication protocols such as CANopen, Modbus RTU, Modbus TCP, EtherCAT, etc.

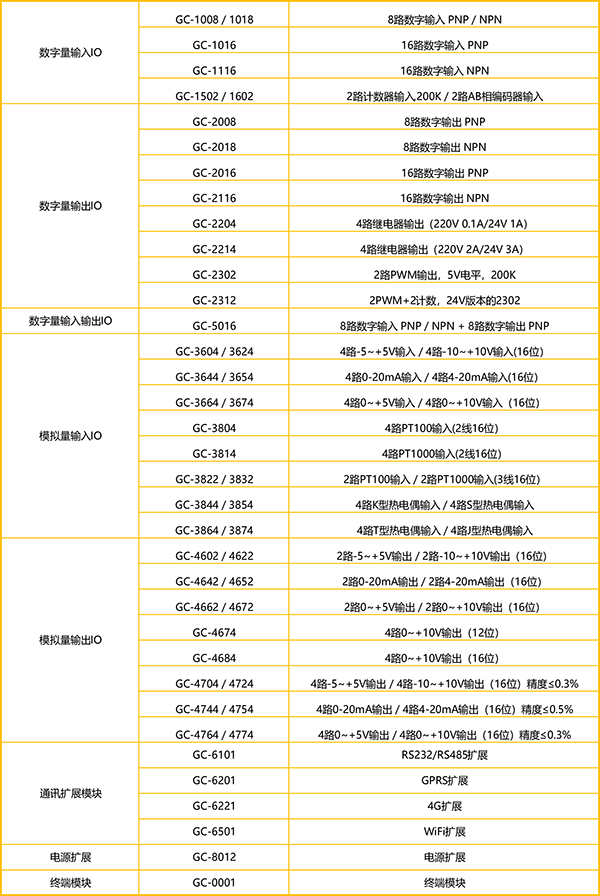

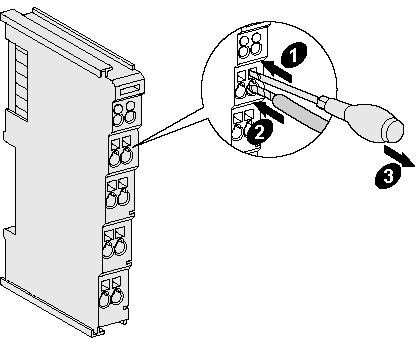

GC系列IO模块包括：开关量输入及输出模块、模拟量输入及输出模块、脉冲输入及输出模块等。
The GC series IO modules include switch input and output modules, analog input and output modules, pulse input and output modules, etc.

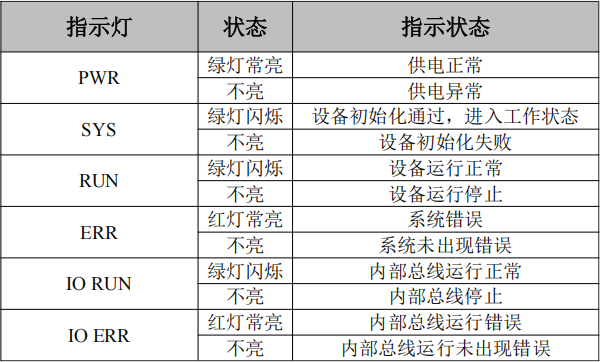

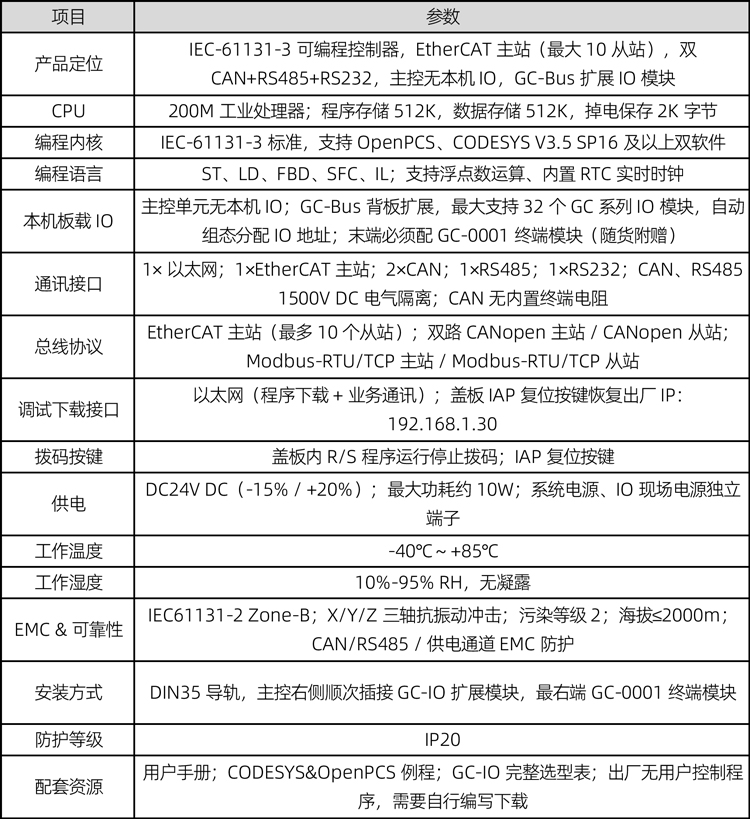

1.2性能特点
1.2 Performance Characteristics

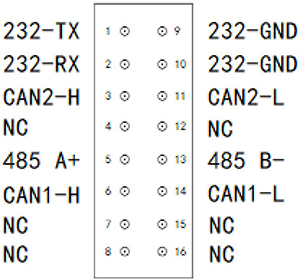

●1路EtherNet；1路EtherCAT；2路CAN；1路RS485；1路RS232；
● 1 EtherNet channel; 1 EtherCAT channel; 2-channel CAN; 1 RS485 channel; 1 RS232 channel;
●编程软件：OpenPCS/CodeSys（编程语言符合IEC61131-3标准）；
●Programming software: OpenPCS/CodeSys (programming language compliant with IEC61131-3 standard);
●支持CANopen协议主/从站功能；
● Support CANopen protocol master/slave station function;
●支持Modbus RTU/TCP主/从站功能；
● Supports Modbus RTU/TCP master/slave functionality;
●支持EtherCAT主站功能；从站数：最多10个EtherCAT从站；
● Support EtherCAT master station function; Number of Slave Stations: Up to 10 EtherCAT Slave Stations;
●组态方式为自动组态形式；
●The configuration mode is in the form of automatic configuration;
●电源采用24V DC；输入电流最大为1A；
●The power supply adopts 24V DC; The maximum input current is 1A;
●通信隔离为1500V DC；
●Communication isolation is 1500V DC;
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;
●防护等级：IP20；
● Protection level: IP20;
●EMC抗干扰等级：Zone B；
●EMC anti-interference level: Zone B;
●EMC抗干扰支持：供电通道、RS485通道、CAN1通道。
●EMC anti-interference support: power supply channel, RS485 channel, CAN1 channel.

1.3典型应用
1.3 Typical Applications

●工业自动化控制核心
● Industrial automation control core
●模拟量闭环控制系统
● Analog closed-loop control system
●开关量开环控制，逻辑运算
● Switching open-loop control, logical operation

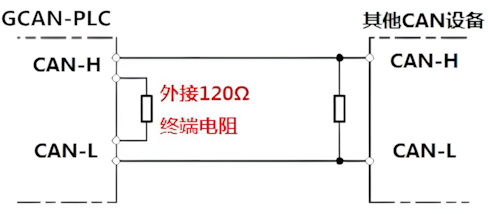

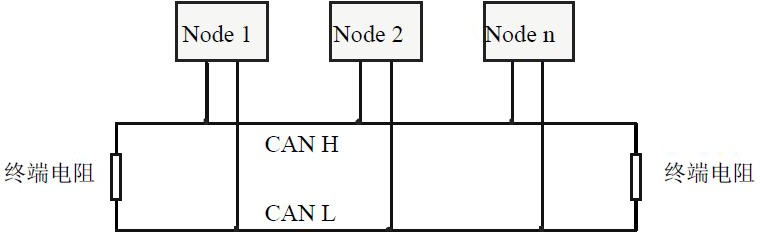

●工业CAN总线、ModBUS总线网络通讯
●Industrial CAN bus, ModBUS bus network communication

GCAN-PLC-430设备使用手册链接
GCAN-PLC-430 Equipment User Manual Link

www.gcgd.net/filedownload/2977801
