1功能简介
1 Function Introduction

1.1功能概述
1.1 Function Overview

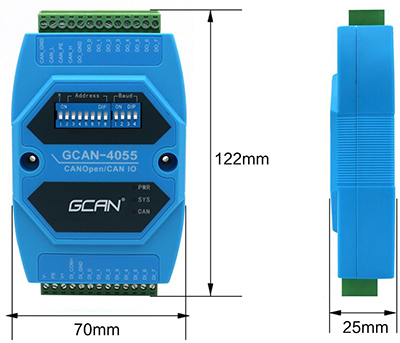

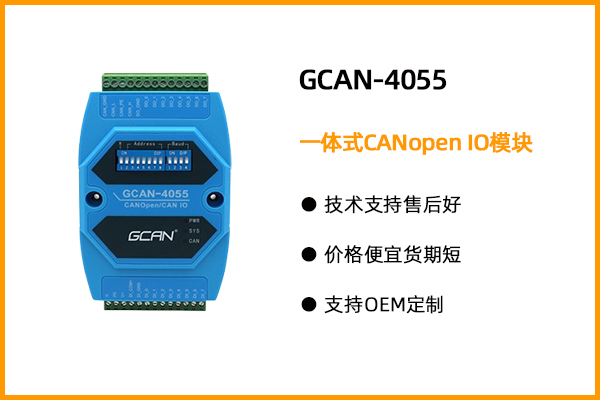

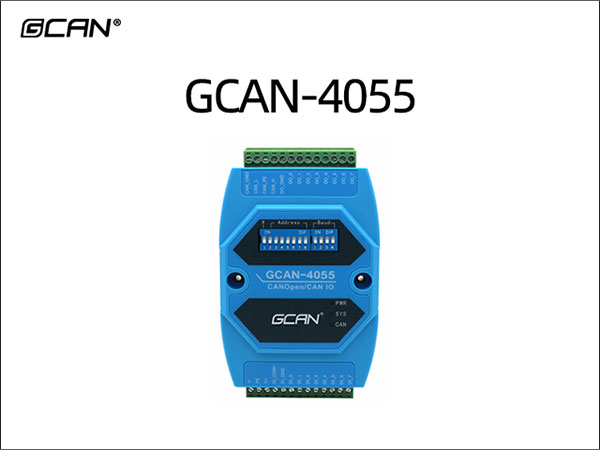

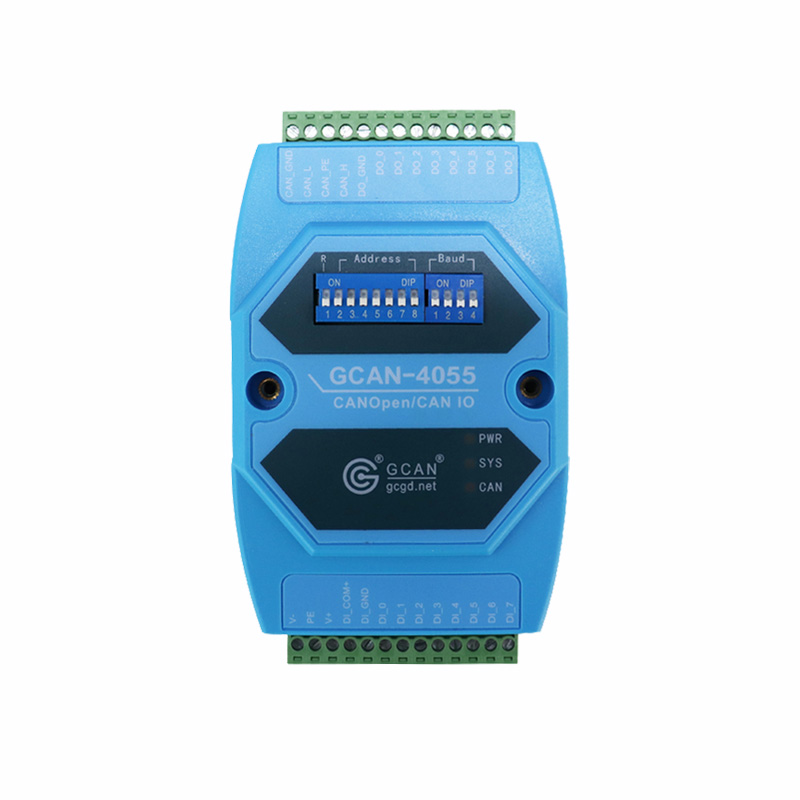

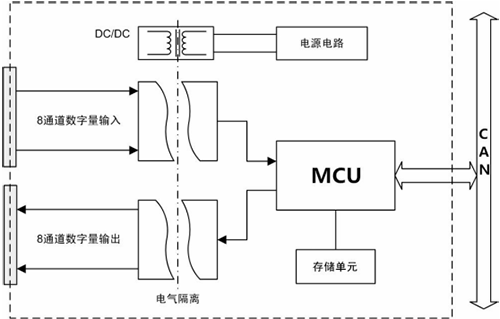

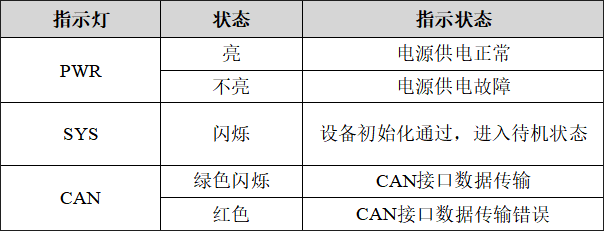

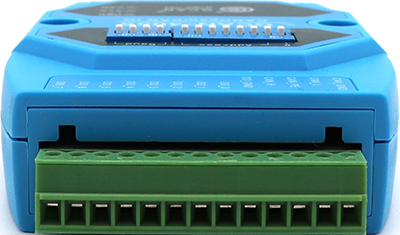

GCAN-4055模块是集成1路标准CANopen接口、8路开关量输入通道、8路开关量输出通道的工业级CANopen数字量输入输出模块。采用GCAN-4055模块，用户可用于采集数字量输入信号，并输出数字量信号，控制开关，实现远程开关设备和CANopen网络之间的连接，构成CANopen网络中数据量信号采集、输出的控制节点。
The GCAN-4055 module is an industrial grade CANopen digital input/output module that integrates 1 standard CANopen interface, 8 switch input channels, and 8 switch output channels. Using the GCAN-4055 module, users can collect digital input signals, output digital signals, control switches, and connect remote switch devices to the CANopen network, forming a control node for data signal acquisition and output in the CANopen network.

GCAN-4055模块是数字量信号采集和输出的关键性工具，同时该模块具有体积小巧、接线便捷等特点。GCAN-4055模块的总线接口集成隔离保护模块，使其避免由于瞬间的过压过流而对模块造成损坏。采用DIN导轨的固定方式，可使其更容易集成到各种控制柜中。
The GCAN-4055 module is a key tool for digital signal acquisition and output, and it has the characteristics of small size and convenient wiring. The bus interface of GCAN-4055 module integrates an isolation protection module to prevent damage to the module caused by transient overvoltage and overcurrent. The use of DIN rail fixation makes it easier to integrate into various control cabinets.

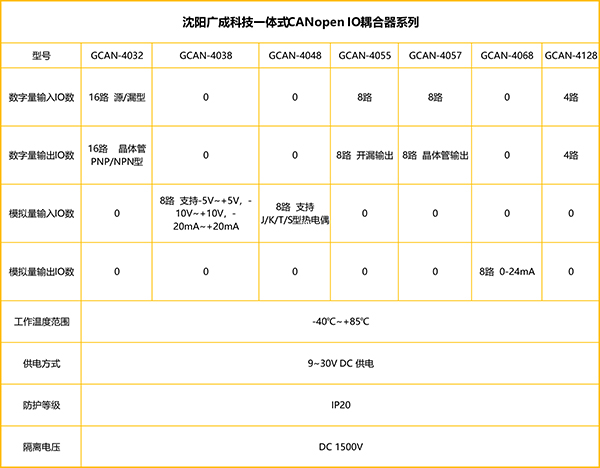

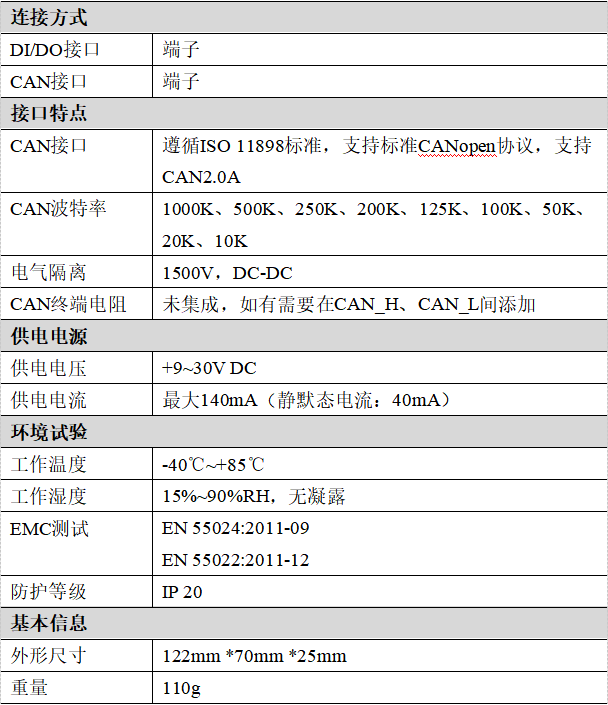

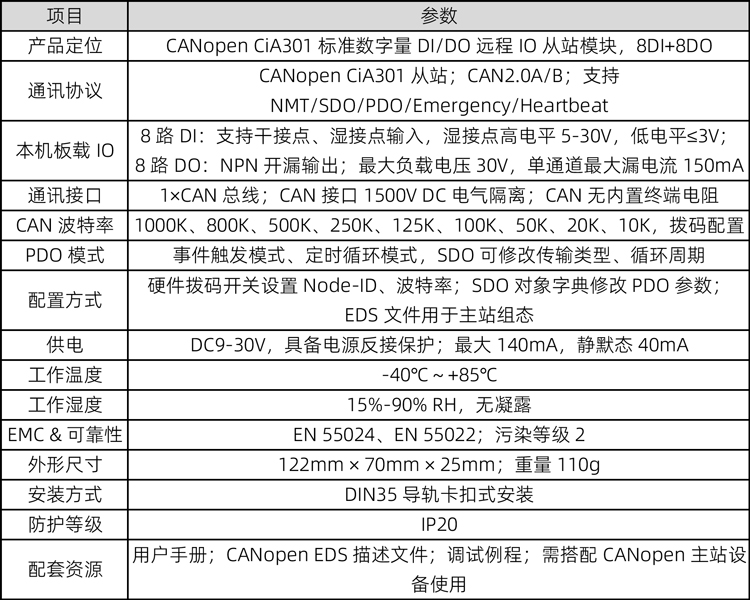

1.2性能特点
1.2 Performance Characteristics

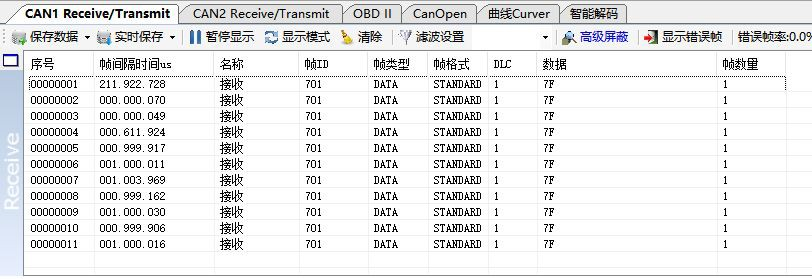

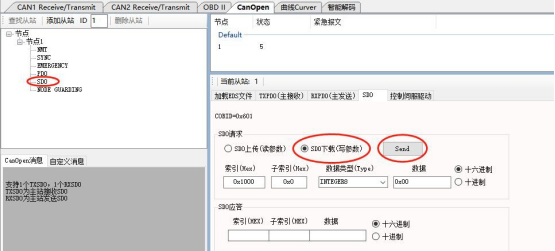

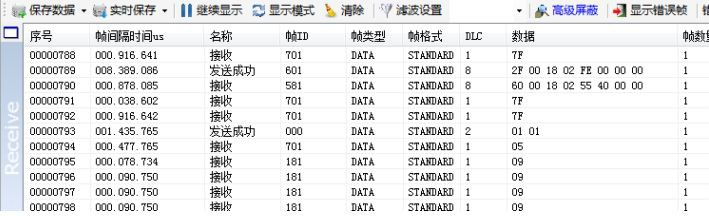

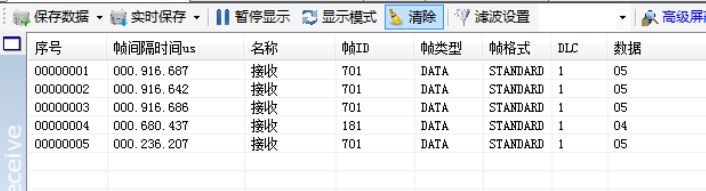

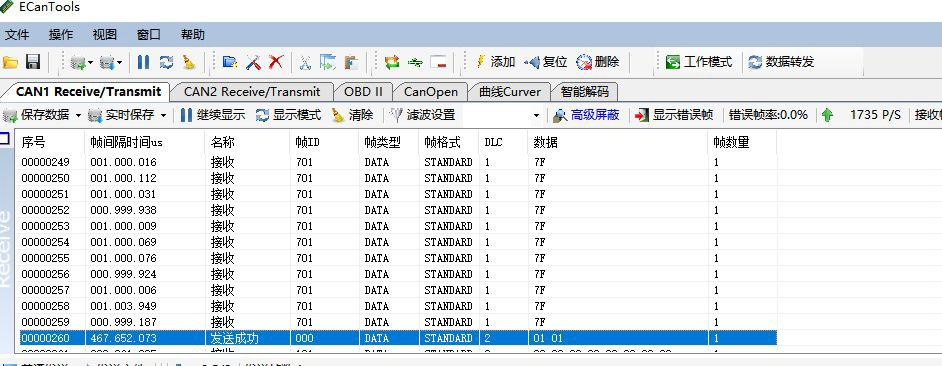

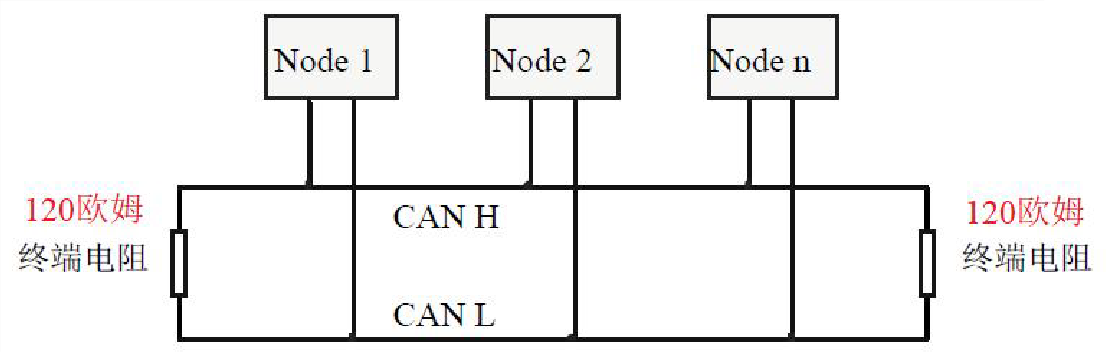

●CAN-bus支持CAN2.0A和CAN2.0B帧格式，符合ISO/DIS 11898规范；
●CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS 11898 specification;
●CAN-bus通讯波特率在10Kbps~1Mbps之间任意可编程；
●The CAN bus communication baud rate can be programmed between 10Kbps and 1Mbps;

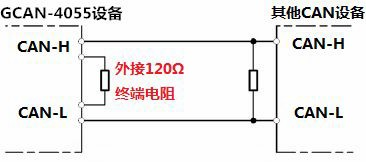

●CAN-bus接口采用电气隔离，隔离模块绝缘电压：1500V DC；
●The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is 1500V DC;
●使用9~30V DC供电，140mA（静默态电流：40mA）；
● Powered by 9~30V DC, 140mA (silent current: 40mA);

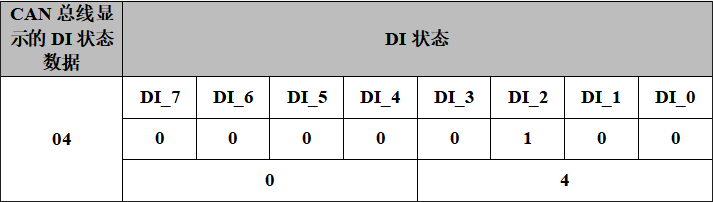

●数字量输入通道数：8路；
●Number of digital input channels: 8 channels;
●数字量输出通道数：8路；
●Number of digital output channels: 8 channels;
●数字量输入类型：PNP型；
● Digital input type: PNP type;
●数字量输入信号：支持干接点、湿接点输入；
● Digital input signal: supports dry contact and wet contact input;
●湿接点数字量输入高电平信号（数字1）：+5V~30V；
●Wet junction point input high level signal (digital 1):+5V~30V;
●湿接点数字量输入低电平信号（数字0）：≤+3V；
●Wet junction point input low level signal (digital 0): ≤+3V;

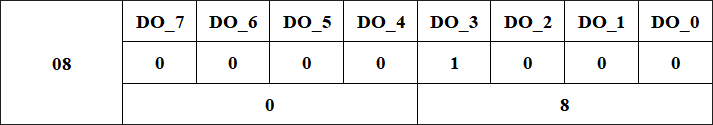

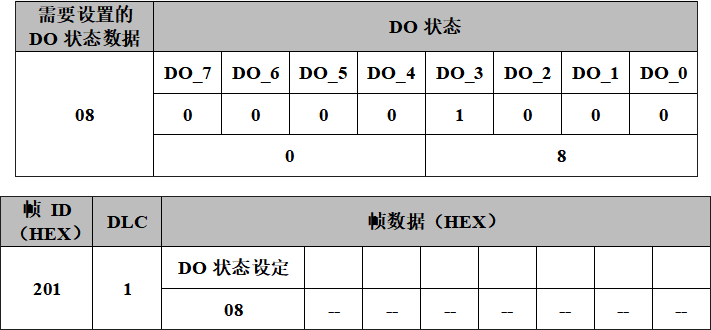

●数字量输出类型：NPN型；
● Digital output type: NPN type;
●数字量输出信号：集电极开漏输出，最大负载电压+30V，最大漏电流150mA；
●Digital output signal: collector open drain output, maximum load voltage+30V, maximum leakage current 150mA;

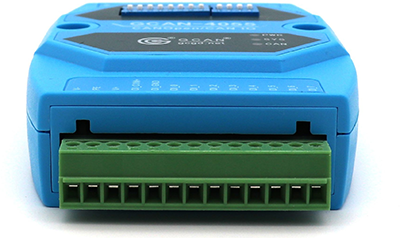

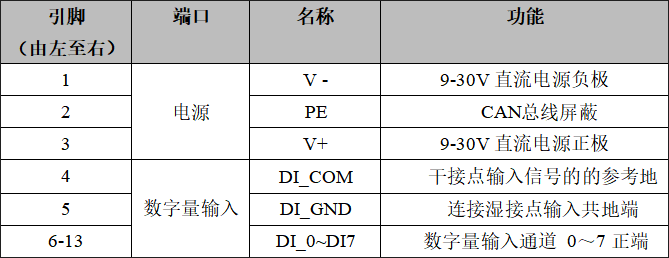

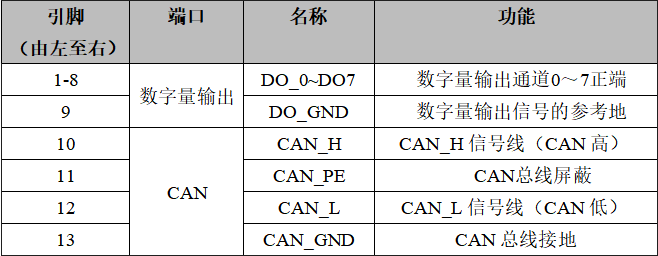

●DI、DO、CANopen接口使用端子接口；
●DI, DO, CANopen interfaces use terminal interfaces;

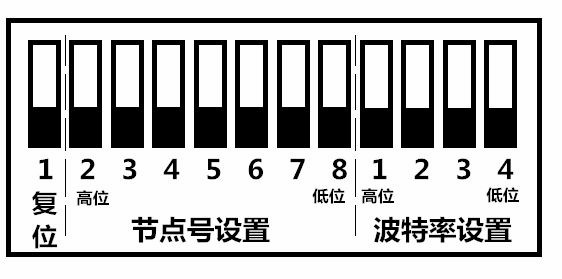

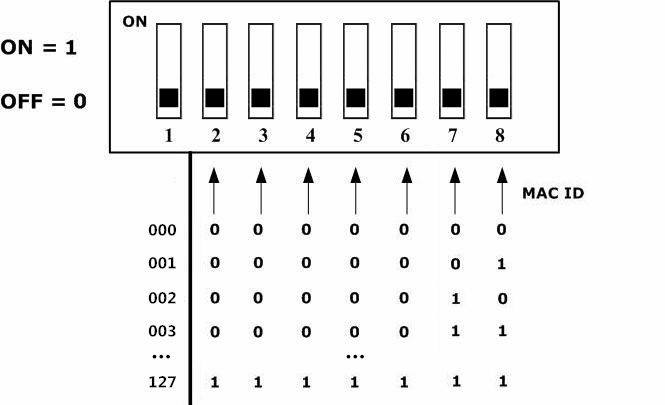

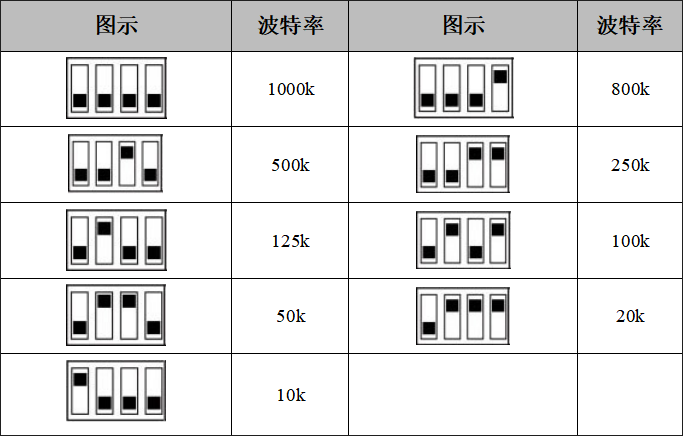

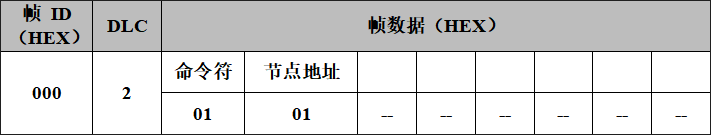

●使用拨码开关配置模块波特率及节点号；
● Use dip switch to configure module baud rate and node number;

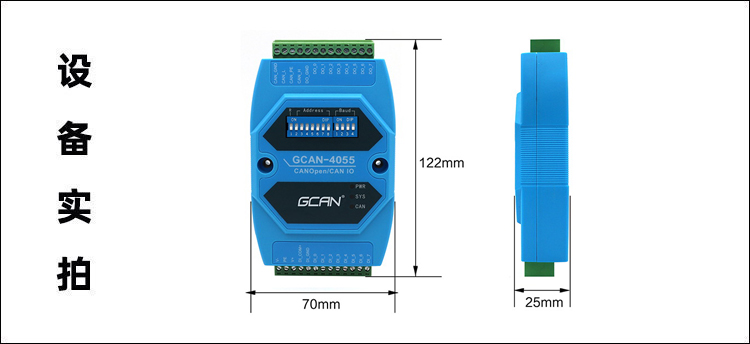

●可用配套卡轨连接件，安装到DIN卡轨上；
● Can use matching card rail connectors to install on DIN card rails;
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;

1.3典型应用
1.3 Typical Applications

●工业现场网络数据监控；
●Industrial site network data monitoring;
●煤矿、油井远程通讯；
●Remote communication for coal mines and oil wells;
●CAN教学应用远程通讯；
● Remote communication for CAN teaching applications;
●CAN工业自动化控制系统；
●CAN industrial automation control system;
●智能楼宇控制数据广播系统等CAN-bus应用系统。
● CAN bus application systems such as intelligent building control data broadcasting systems.

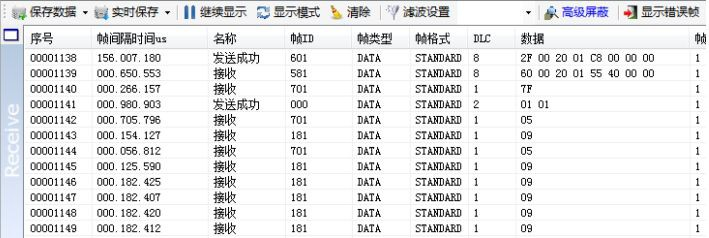

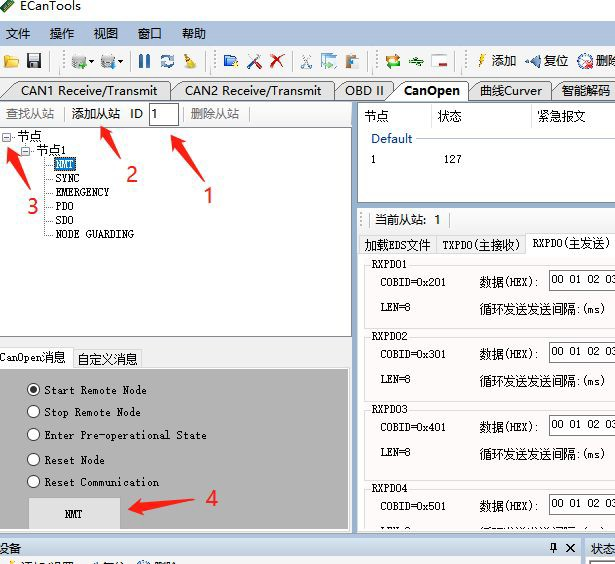

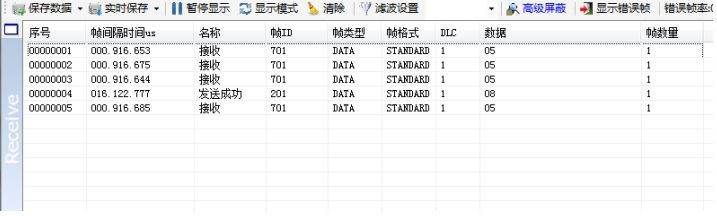

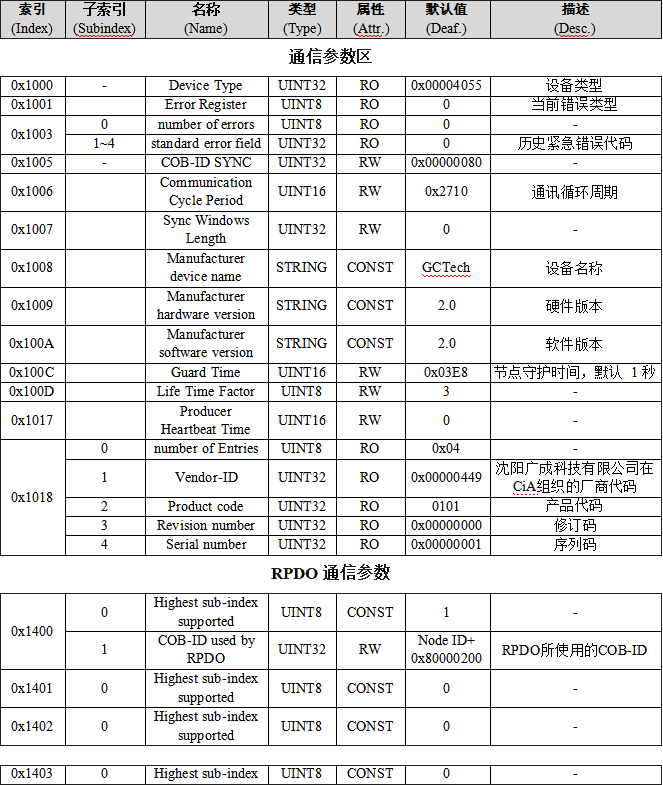

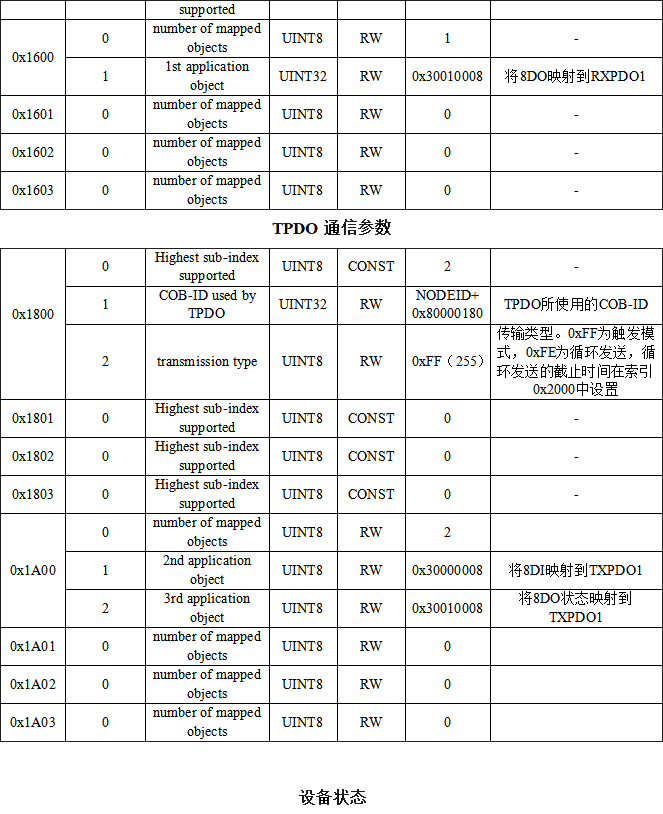

GCAN-4055设备使用手册链接
GCAN-4055 Equipment User Manual Link

www.gcgd.net/filedownload/2977870
