1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

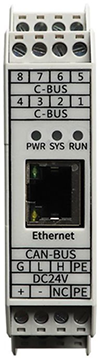

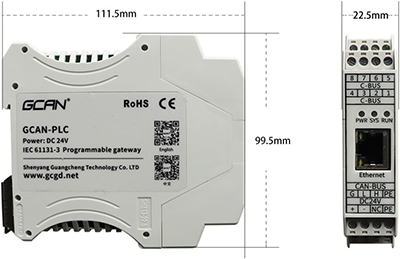

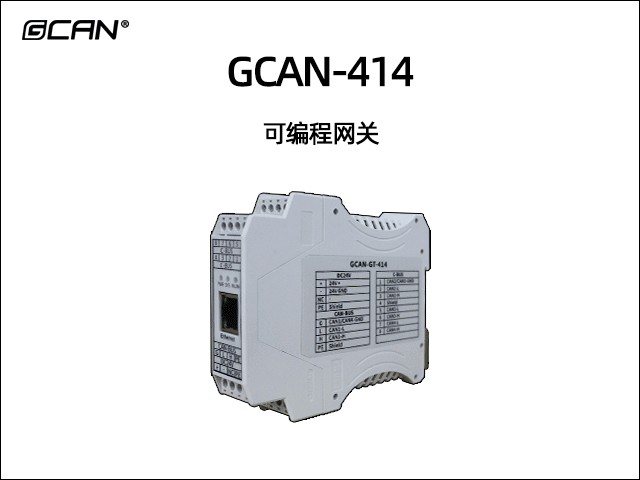

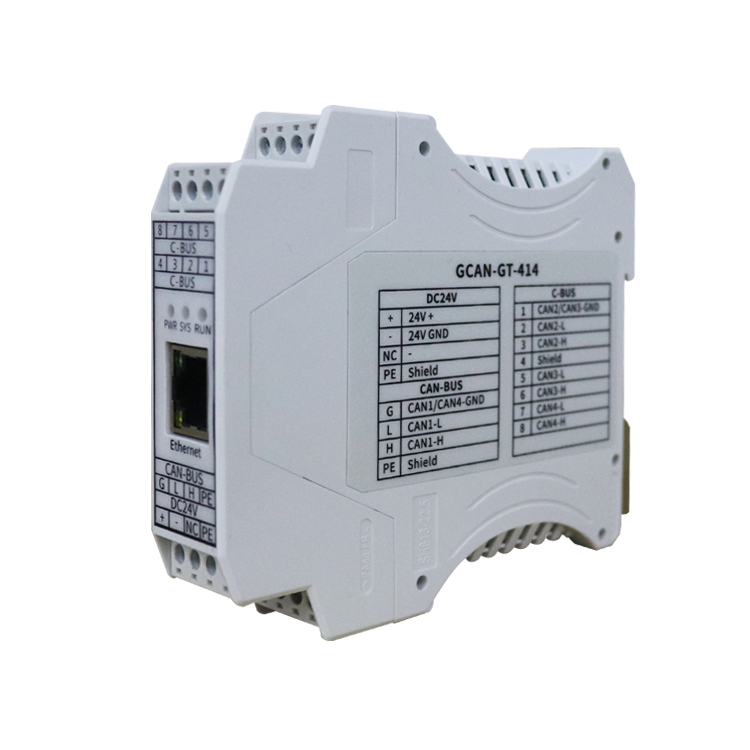

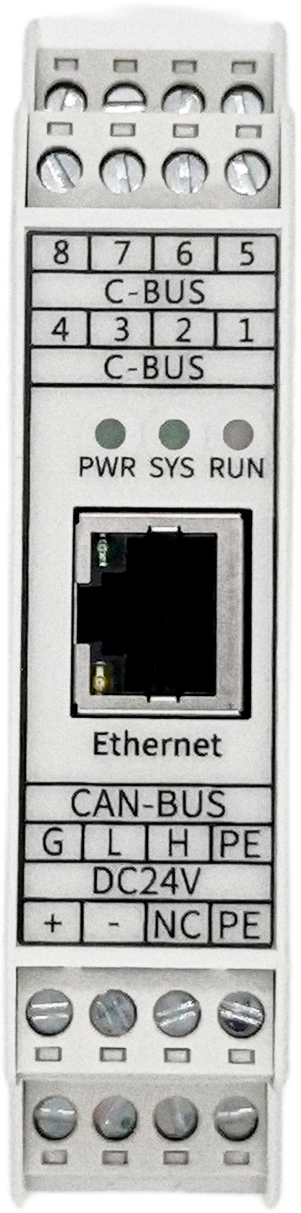

GCAN-GT-414是一种可编程的总线网关/转换器。该设备集成了4路CAN总线接口、1路以太网总线接口。在实际使用前，用户需要通过OpenPCS软件对该设备编写应用程序，以此来实现不同总线接口之间数据的互相转换。
GCAN-GT-414 is a programmable bus gateway/converter. This device integrates 4 CAN bus interfaces and 1 Ethernet bus interface. Before actual use, users need to write application programs for the device through OpenPCS software to achieve data conversion between different bus interfaces.

GCAN-GT-414模块支持多种标准通信协议，如CANopen、SAEJ1939、ModbusTCP等，用户在实际使用时可直接选择对应协议的功能块加载即可使用，功能块的加入使得用户编程工作变得简单，用户只需了解基本的PLC编程指令和对应总线对应协议的特点和参数即可完成编程工作。
The GCAN-GT-414 module supports multiple standard communication protocols, such as CANopen, SAEJ1939, Modbus TCP, etc. Users can directly select the corresponding protocol's function block to load and use in actual use. The addition of function blocks makes user programming work simple. Users only need to understand the basic PLC programming instructions and the characteristics and parameters of the corresponding bus protocol to complete programming work.

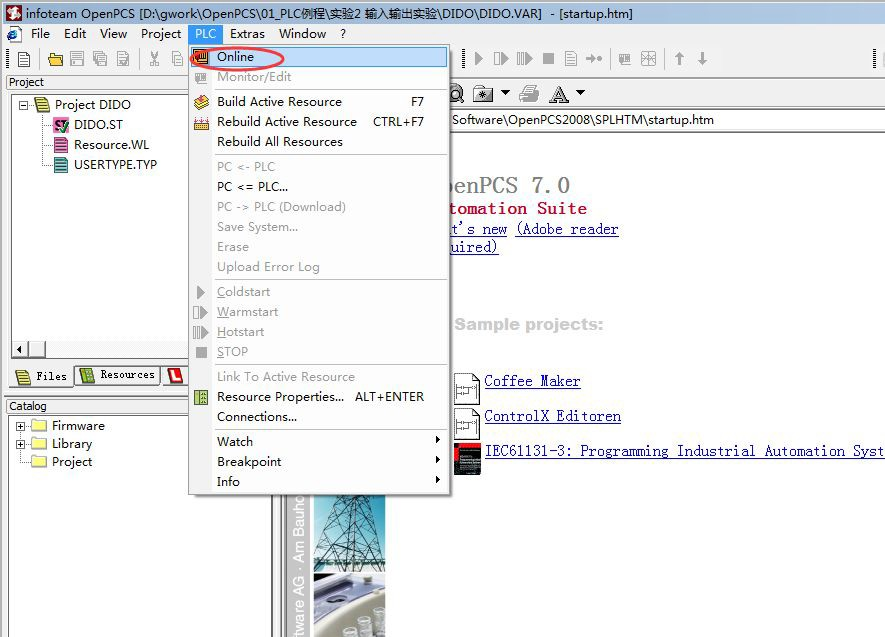

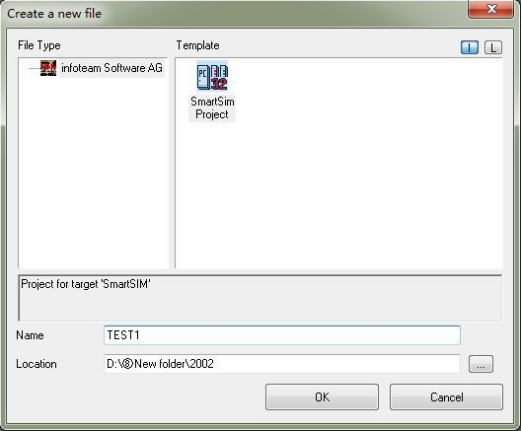

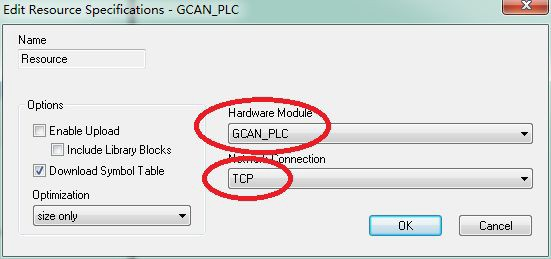

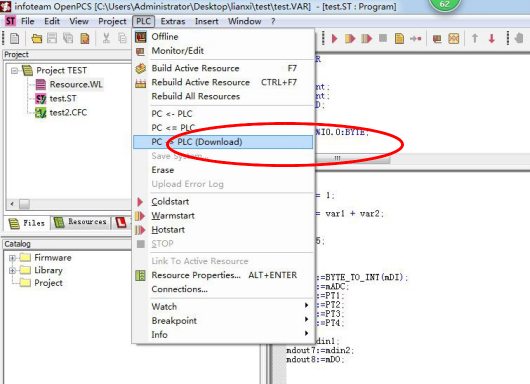

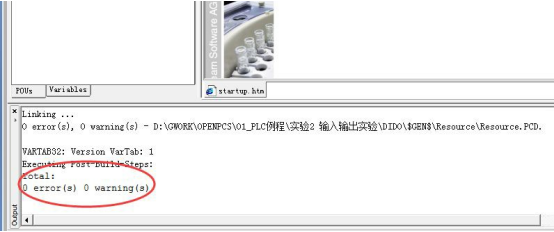

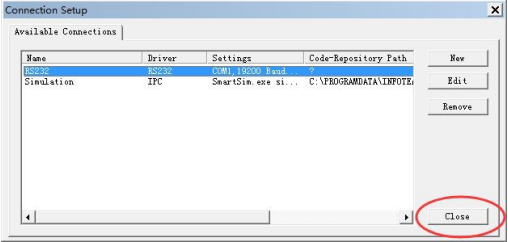

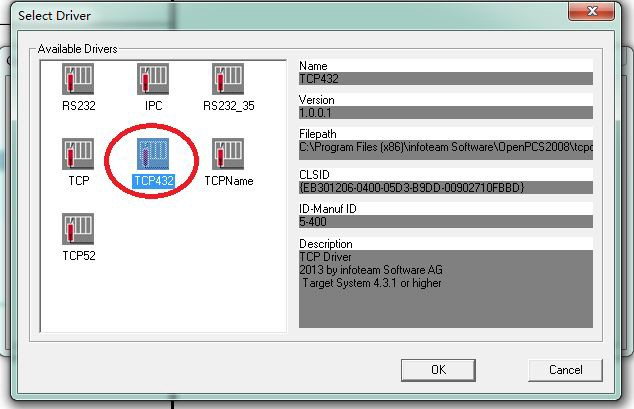

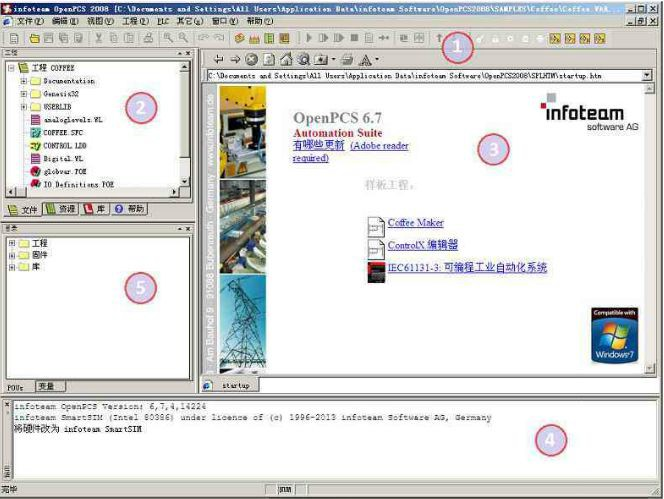

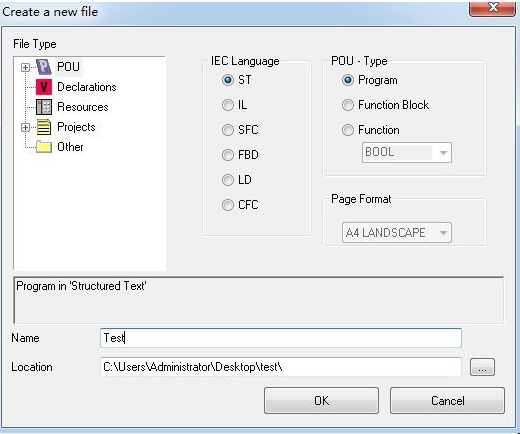

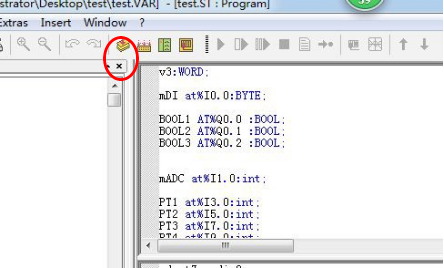

GCAN-GT-414可使用OpenPCS软件对其编程，该软件支持符合IEC-61131-3标准中规定的五种标准PLC编程语言，如：SFC（顺序功能图）、LD（梯形图）、FBD（功能块）、ST（结构化文本）、IL（指令表），这使得程序的可移植性和复用性很强，而且该软件还具有多种调试功能（如断电、单步、监控等），使调试程序更加方便。
GCAN-GT-414 can be programmed using OpenPCS software, which supports five standard PLC programming languages that comply with the IEC-61131-3 standard, such as SFC (Sequential Function Diagram), LD (Ladder Diagram), FBD (Function Block), ST (Structured Text), IL (Instruction List). This makes the program highly portable and reusable, and the software also has multiple debugging functions (such as power-off, single step, monitoring, etc.), making debugging the program more convenient.

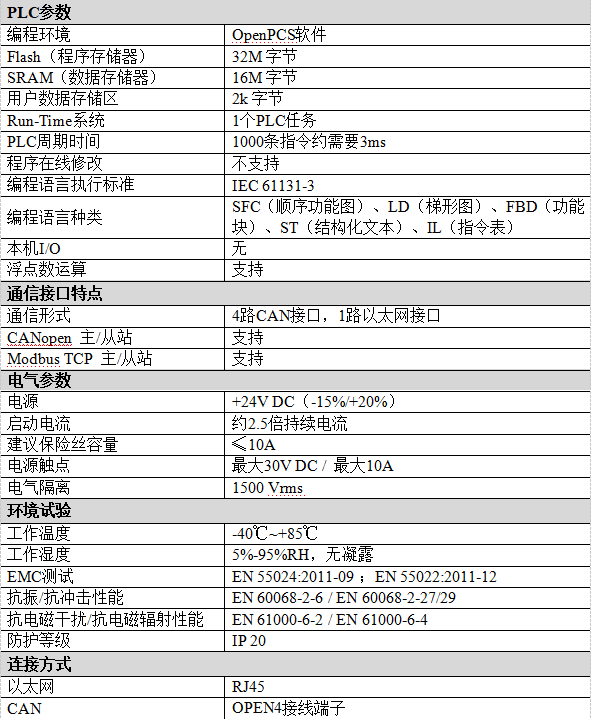

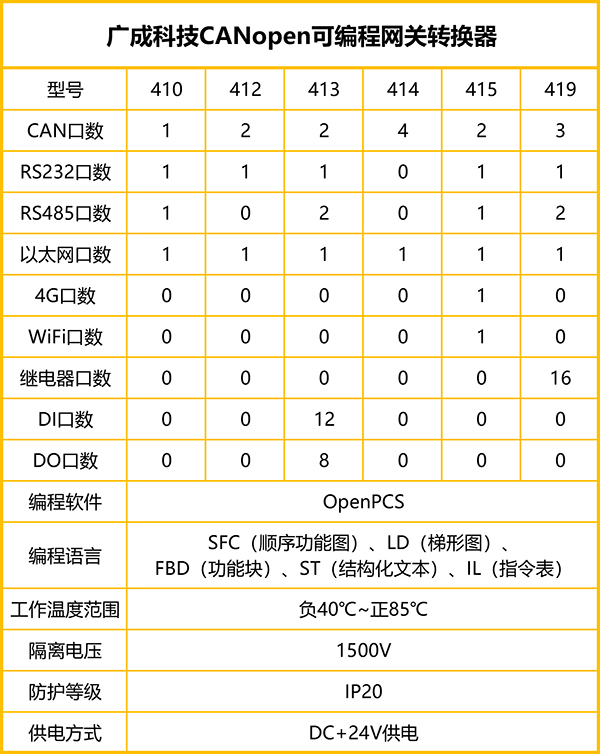

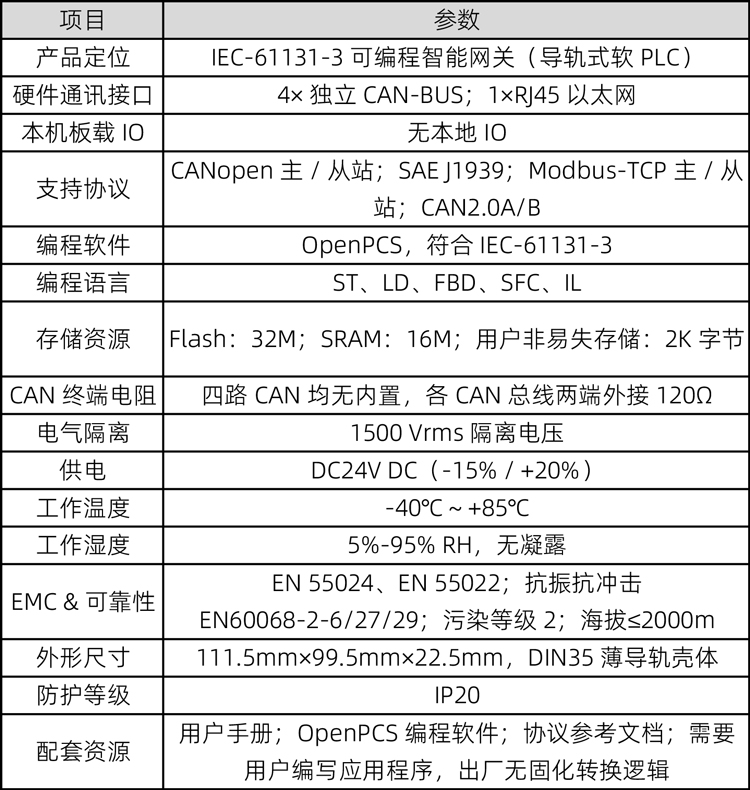

1.2性能特点
1.2 Performance Characteristics

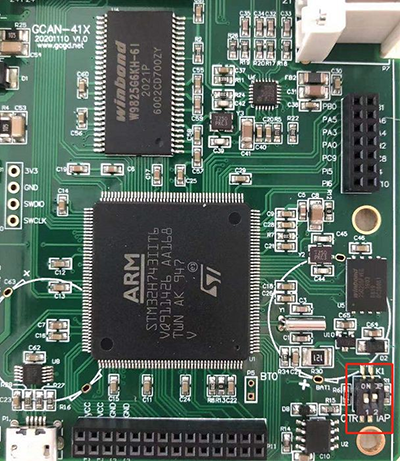

●高速的32位工业级处理器；
● High speed 32-bit industrial grade processor;
●内嵌硬件看门狗定时器；
●Embedded hardware watchdog timer;

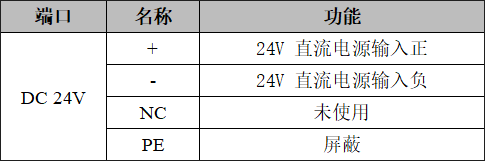

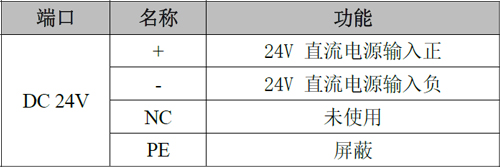

●使用外接电源供电(DC+24V，100mA)；
● Use an external power supply (DC+24V, 100mA) for power supply;
●静电放电抗扰度等级：接触放电±2KV，空气放电±8KV；
●Static discharge immunity level: Contact discharge ± 2KV, air discharge ± 8KV;
●电快速瞬变脉冲群抗扰度等级：±1KV；
● Electrical fast transient burst immunity level: ± 1KV;
●浪涌抗扰度等级：±1KV；
●Surge immunity level: ± 1KV;
●工作湿度范围：5%~95%RH无凝露；
● Working humidity range: 5%~95% RH without condensation;

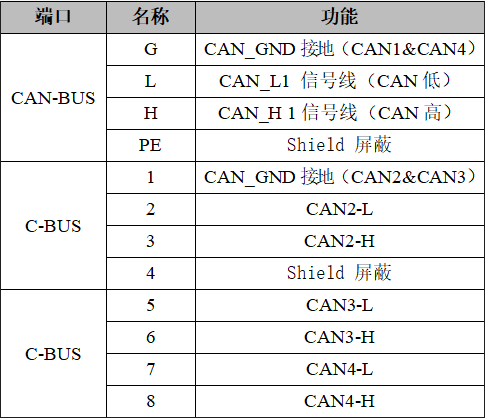

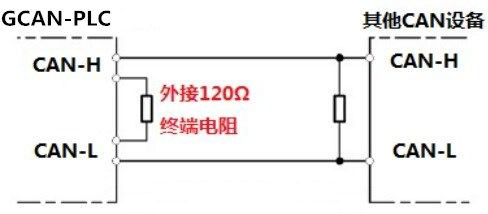

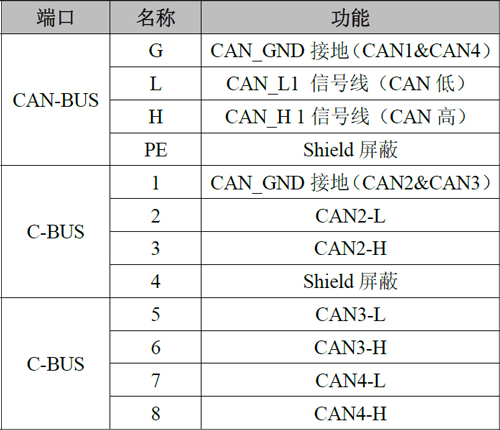

●4路CAN总线接口，1路以太网接口；
●4 CAN bus interfaces and 1 Ethernet interface;
●编程软件：OpenPCS（符合IEC 61131-3标准）；
●Programming software: OpenPCS (compliant with IEC 61131-3 standard);
●支持CANopen协议主/从站功能；
● Support CANopen protocol master/slave station function;
●支持Modbus TCP主/从站功能；
● Supports Modbus TCP master/slave functionality;

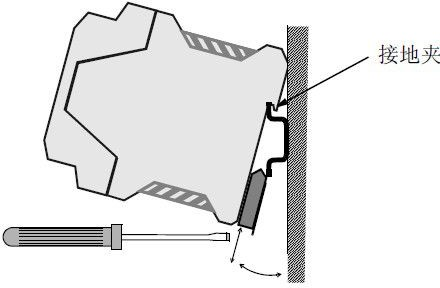

●标准DIN导轨安装方式，专为工业设计。
●Standard DIN rail installation method, specifically designed for industrial use.
●电气隔离为1500 Vrms；
●Electrical isolation is 1500 Vrms;
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;
●防护等级：IP20。
●Protection level: IP20.

1.3典型应用
1.3 Typical Applications

●工业以太网与CAN总线数据相互转换
● Mutual conversion of industrial Ethernet and CAN bus data
●工业以太网设备与CAN网络设备互联
●Interconnection between industrial Ethernet devices and CAN network devices
●电力通讯网络
● Power communication network
●工业控制设备
●Industrial control equipment
●高速、大数据量通讯
● High speed and large data communication

GCAN-GT-414设备使用手册链接
GCAN-GT-414 Equipment User Manual Link

www.gcgd.net/filedownload/2977897
