1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

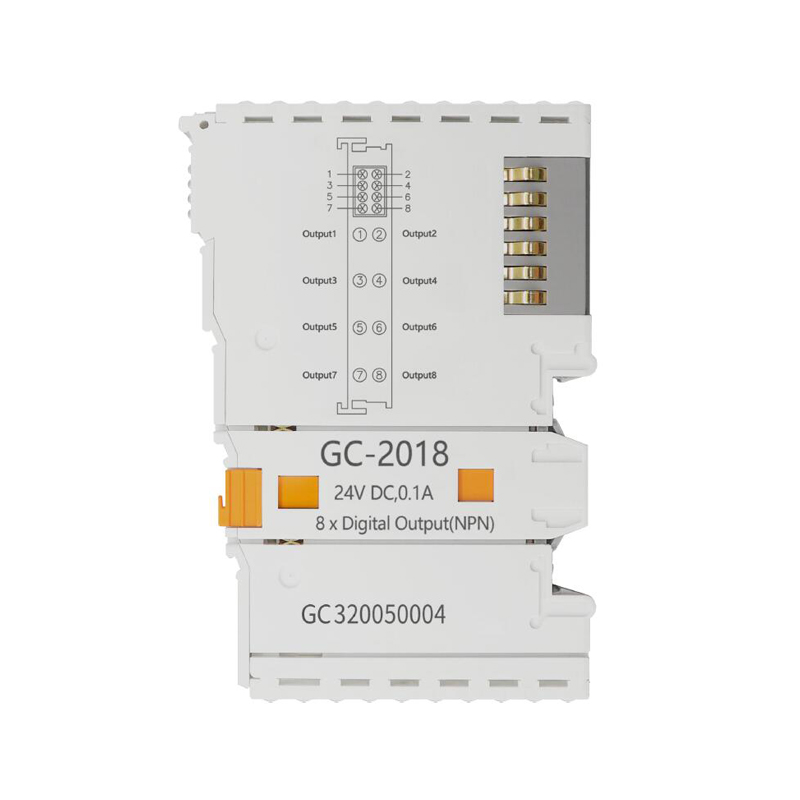

GC-2018模块是NPN型集成8路数字量输出通道的I/O模块。该模块可以接收到GCANPLC-3/4/5系列PLC主控模块或GCAN-8X00系列耦合器发出的信号，并将信号以数字量的形式发送出去。该模块可与其他任何GC系列IO模块搭配使用，实现工业自动化或分布式控制系统中数字量数据的处理和输出。
The GC-2018 module is an NPN type integrated I/O module with 8 digital output channels. This module can receive signals from the GCANPLC-3/4/5 series PLC main control module or the GCAN-8X00 series coupler, and send the signals in digital form. This module can be used in conjunction with any other GC series IO module to achieve the processing and output of digital data in industrial automation or distributed control systems.

1.2性能特点
1.2 Performance Characteristics

●输出通道数为8个；
●The number of output channels is 8;
●数字量输出电压为0V DC（±20%）；
●The digital output voltage is 0V DC (± 20%);
●负载类型为电阻式负载、电感式负载、灯类负载；
●The load types are resistive load, inductive load, and lamp load;
●电流最大值为500mA（单通道）、最大值280mA（8通道同时输出）；
●The maximum current is 500mA (single channel) and 280mA (8-channel simultaneous output);
●电气隔离为500Vrms（GC-bus信号电压）；
●Electrical isolation is 500Vrms (GC bus signal voltage);
●过程映像中的位宽输出为1字节；
●The bit width output in the process image is 1 byte;
●组态无地址设置，通过总线耦合器或控制器配置；
●Configuration without address setting, configured through bus coupler or controller;
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;
●尺寸：长100mm*宽69mm*高12mm。
●Size: Length 100mm * Width 69mm * Height 12mm.

1.3典型应用
1.3 Typical Applications

●根据总线耦合器或控制器输出数字量信号。
●Output digital signals based on the bus coupler or controller.

GC-2018设备使用手册链接
GC-2018 Equipment User Manual Link

www.gcgd.net/filedownload/2977829
