1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

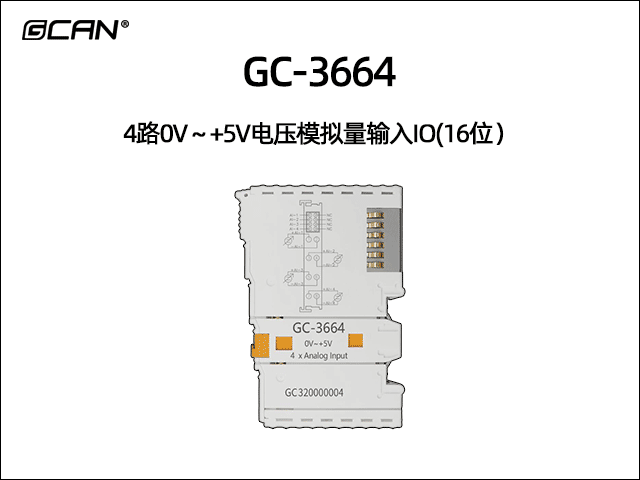

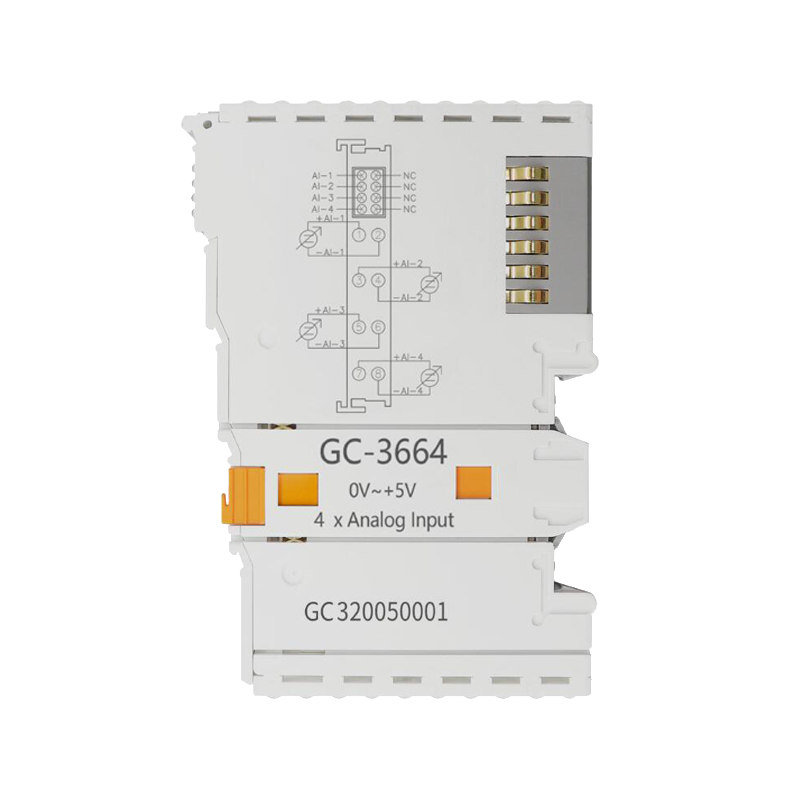

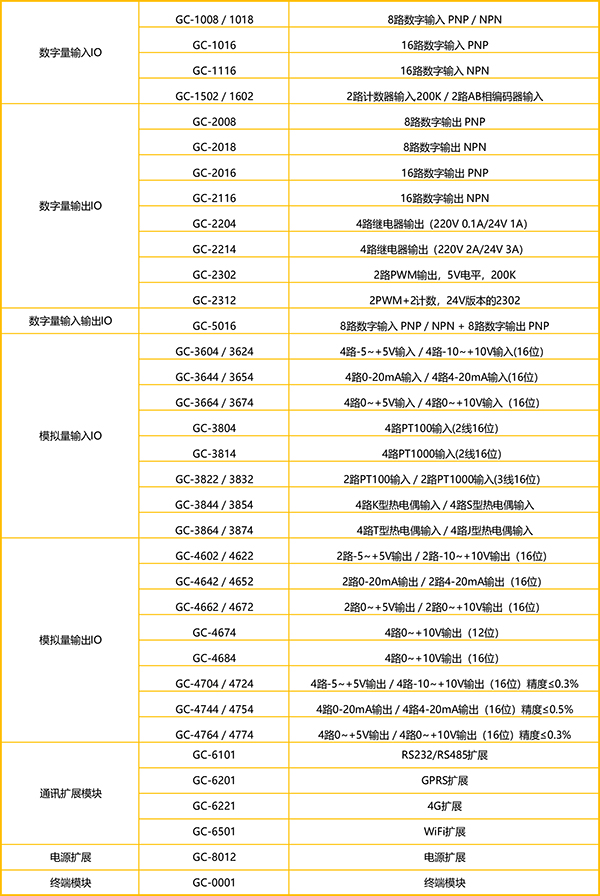

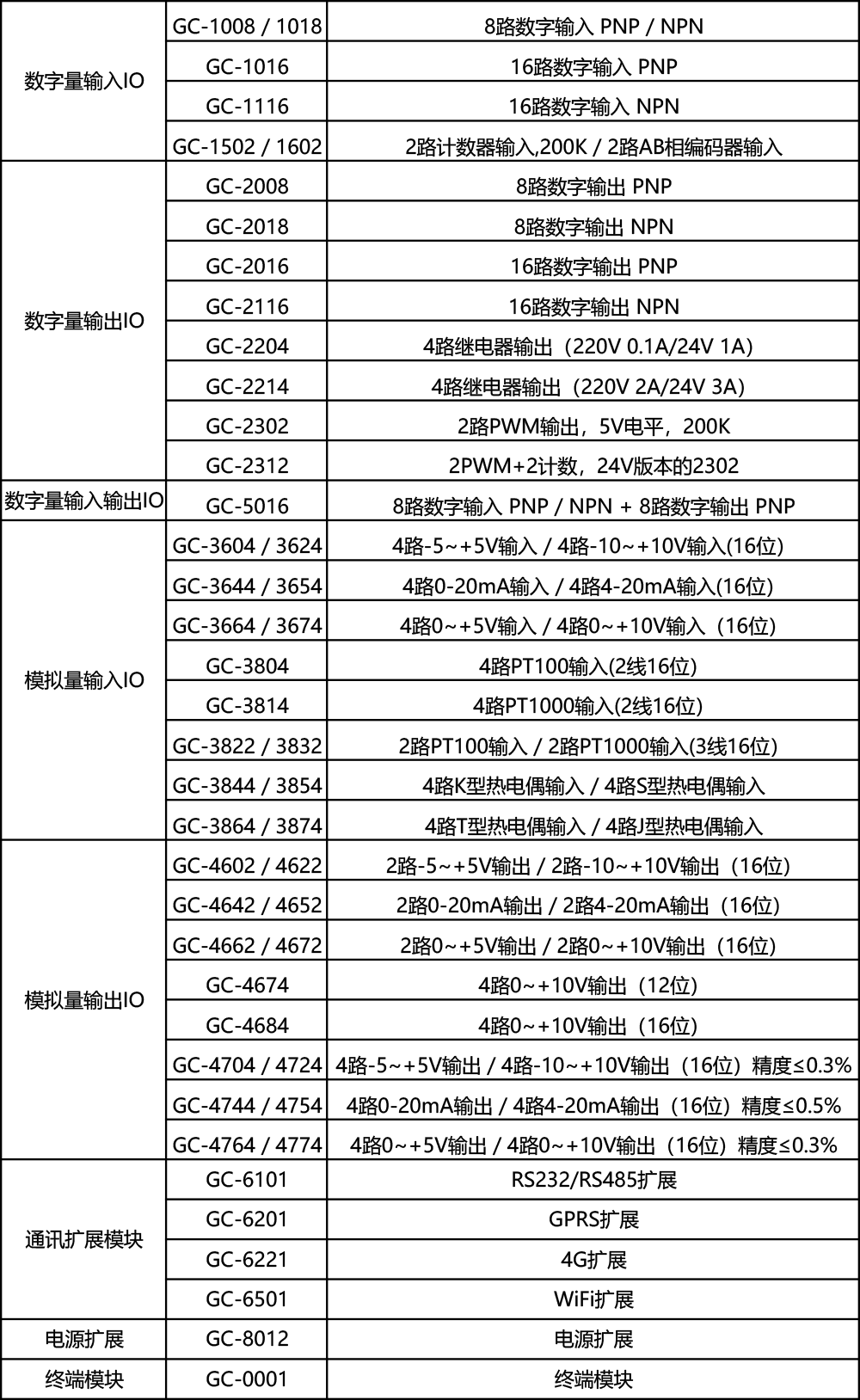

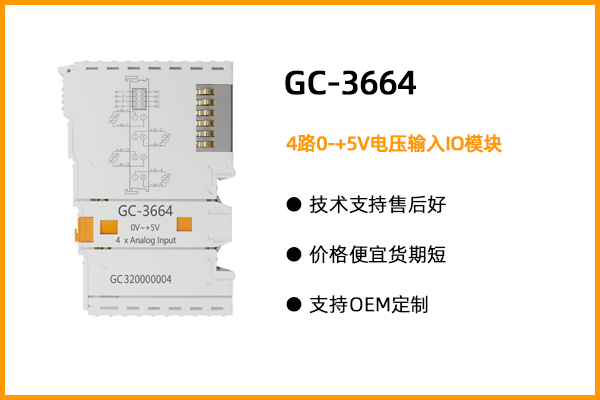

GC-3664模块是集成4路0V~+5V模拟量输入通道的I/O模块。该模块可用于实时采集模拟量信号，并将采集到的数值通过内部总线发送给GCAN-PLC-3/4/5系列PLC主控模块或GCAN-8X00系列耦合器。该模块可与其他任何GC系列IO模块搭配使用，实现工业自动化或分布式控制系统中模拟量数据的采集与处理。
The GC-3664 module is an I/O module that integrates 4 channels of 0V~+5V analog input. This module can be used to collect analog signals in real time and send the collected values to the GCAN-PLC-3/4/5 series PLC main control module or GCAN-8X00 series coupler through the internal bus. This module can be used in conjunction with any other GC series IO module to achieve the acquisition and processing of analog data in industrial automation or distributed control systems.

1.2性能特点
1.2 Performance Characteristics

●输入点数为4个；
● Input 4 points;
●采集电压范围0V~+5V；
● Collect voltage range from 0V to+5V;
●内部电阻100 kΩ；
●Internal resistance of 100 k Ω;
●测量分辨率为16位；
●The measurement resolution is 16 bits;
●转换时间约3ms；
●The conversion time is about 3ms;
●精度（25℃）：±0.5%全量程；
●Accuracy (25 ℃): ± 0.5% of full range;
●电气隔离为500 Vrms（GC-bus/信号电压）；
●Electrical isolation is 500 Vrms (GC bus/signal voltage);
●通过GCAN-PLC-3/4/5系列PLC主控模块或GCAN-8X00系列耦合器供电；
●Powered by GCAN-PLC-3/4/5 series PLC main control module or GCAN-8X00 series coupler;
●过程映像中的位宽输入为4 x 2字节；
●The bit width input in the process image is 4 x 2 bytes;
●组态无地址设置，通过总线耦合器或控制器配置；
●Configuration without address setting, configured through bus coupler or controller;
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;
●尺寸：长100mm*宽69mm*高12mm。
●Size: Length 100mm * Width 69mm * Height 12mm.

1.3典型应用
1.3 Typical Applications

●采集模拟量信号；
● Collect analog signals;
●接入总线耦合器或控制器，实现模拟量信号的传送。
●Connect to the bus coupler or controller to achieve the transmission of analog signals.

GC-3664设备使用手册链接
GC-3664 Equipment User Manual Link

www.gcgd.net/filedownload/2977837
