1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

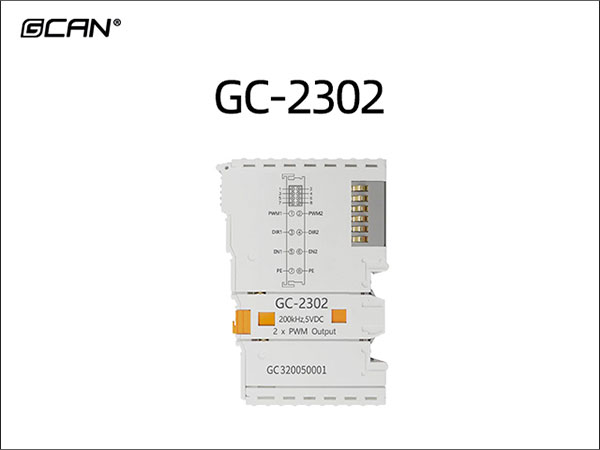

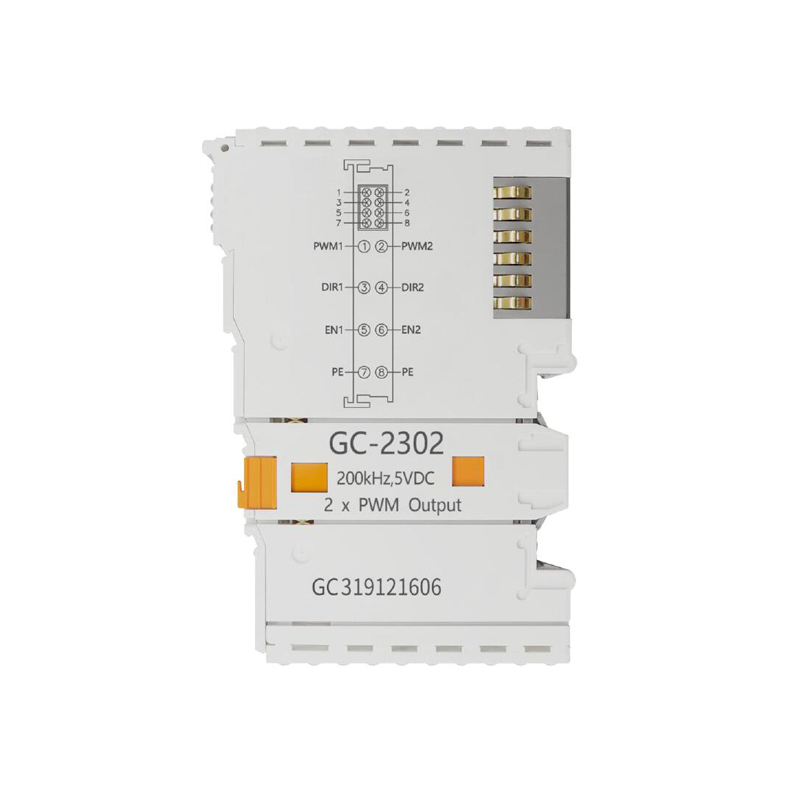

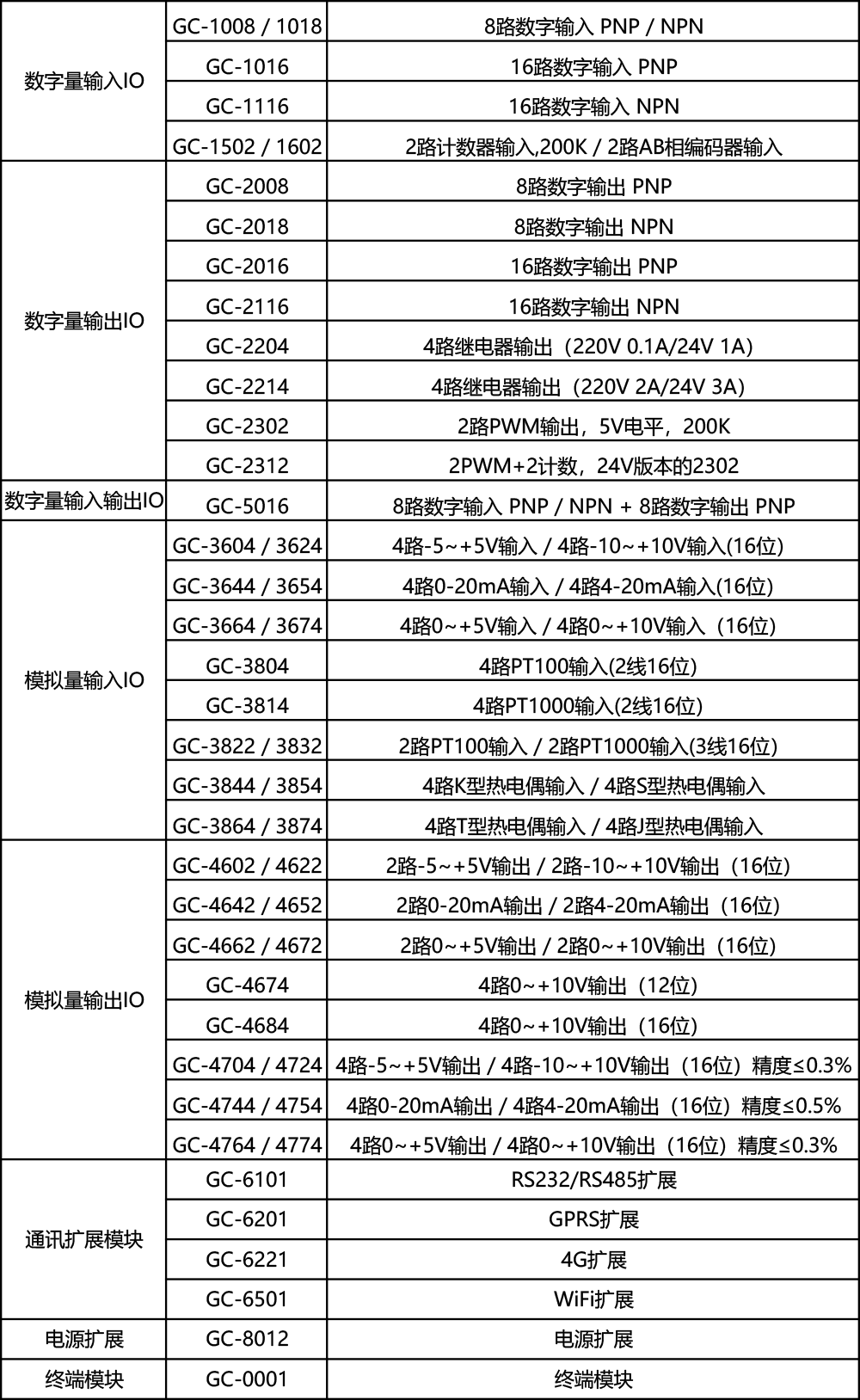

GC-2302模块集成有2路PWM脉冲输出。该模块可用于发送PWM脉冲信号，并可通过内部总线接收来自GCAN-PLC-PLC-3/4/5系列PLC主控模块或GCAN-8X00系列耦合器的控制信号。该模块可与其他任何GC系列IO模块搭配使用，实现工业自动化或分布式控制系统中脉冲信号的输出控制。
The GC-2302 module integrates 2 PWM pulse outputs. This module can be used to send PWM pulse signals and can receive control signals from the GCAN-PLC-PLC-3/4/5 series PLC main control module or GCAN-8X00 series coupler through the internal bus. This module can be used in conjunction with any other GC series IO module to achieve output control of pulse signals in industrial automation or distributed control systems.

1.2性能特点
1.2 Performance Characteristics

●输出脉冲通道数为2路；
●The number of output pulse channels is 2;
●输出脉冲电压信号为5V；
●The output pulse voltage signal is 5V;
●输出脉冲信号最大频率200kHz；
●The maximum frequency of the output pulse signal is 200kHz;
●电气隔离为500 Vrms（GC-bus信号电压）；
●Electrical isolation is 500 Vrms (GC bus signal voltage);
●精度（25℃）：频率：1Hz；占空比1%；
●Accuracy (25 ℃): Frequency: 1Hz; Duty cycle: 1%;
●每路脉冲输出三个信号，包括脉冲信号、方向信号、使能信号；
●Each pulse outputs three signals, including pulse signal, direction signal, and enable signal;
●32位脉冲输出寄存器；
●32-bit pulse output register;
●通过PLC控制器或总线耦合器自动分配组态地址；
●Automatically allocate configuration addresses through PLC controllers or bus couplers;
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;
●尺寸：长100mm*宽69mm*高12mm。
●Size: Length 100mm * Width 69mm * Height 12mm.

1.3典型应用
1.3 Typical Applications

●用于脉冲输出控制步进、伺服电机；
●Used for pulse output control of stepper and servo motors;
●用于输出一定频率的脉冲。
●Used to output pulses of a certain frequency.

GC-2302设备使用手册链接
GC-2302 Equipment User Manual Link

www.gcgd.net/filedownload/2977832
