1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

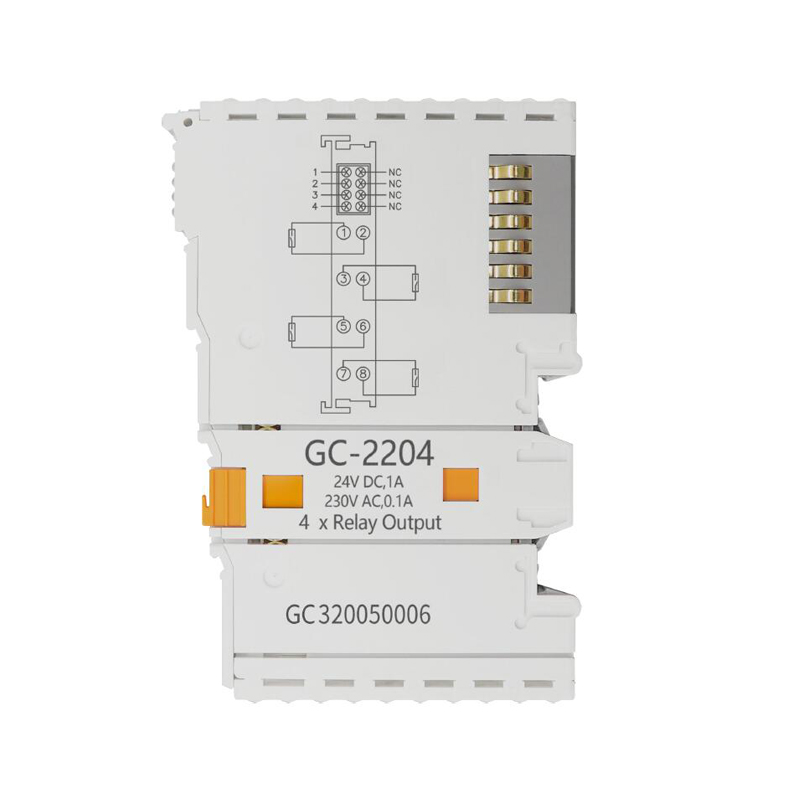

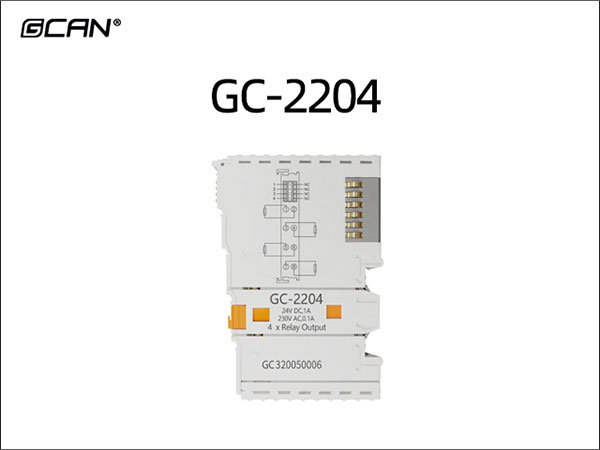

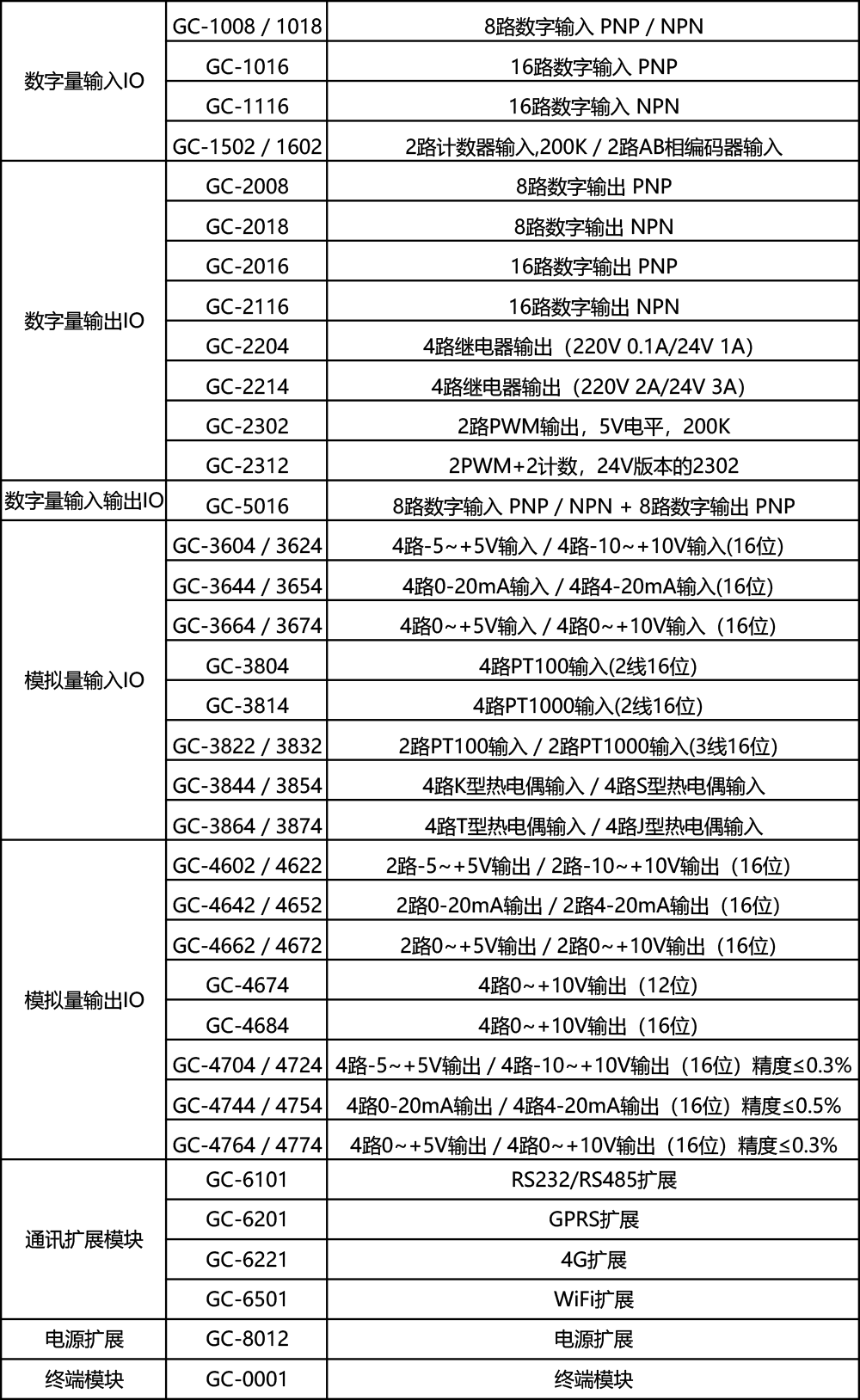

GC-2204模块是集成4路继电器输出通道的I/O模块。该模块可根据GCAN-PLCPLC-3/4/5系列PLC主控模块或GCAN-8X00系列耦合器发送的指令控制继电器的通断。
The GC-2204 module is an I/O module that integrates 4 relay output channels. This module can control the on/off of relays based on instructions sent by the GCAN-PLPLC-3/4/5 series PLC main control module or the GCAN-8X00 series coupler.

1.2性能特点
1.2 Performance Characteristics

●输出通道数为4个；
●The number of output channels is 4;
●额定负载1：0.1A 230VAC；
●Rated load 1: 0.1A 230VAC;
●额定负载2：1A 24VDC；
●Rated load: 2:1A 24VDC;
●电气隔离为500Vrms（GC-bus信号电压）；
●Electrical isolation is 500Vrms (GC bus signal voltage);
●机械耐久度：5*107次；
●Mechanical durability: 5 * 107 times;
●电耐久度：1*105次（室温，额定负载1800次/小时）；
● Electrical durability: 1 * 105 times (at room temperature, rated load 1800 times/hour);
●组态无地址设置，通过总线耦合器或控制器配置；
●Configuration without address setting, configured through bus coupler or controller;
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;
●尺寸：长100mm*宽69mm*高12mm。
●Size: Length 100mm * Width 69mm * Height 12mm.

1.3典型应用
1.3 Typical Applications

●通过总线耦合器或控制器输出继电器信号。
●Output relay signals through bus couplers or controllers.

GC-2204设备使用手册链接
GC-2204 Equipment User Manual Link

www.gcgd.net/filedownload/2977830
