1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

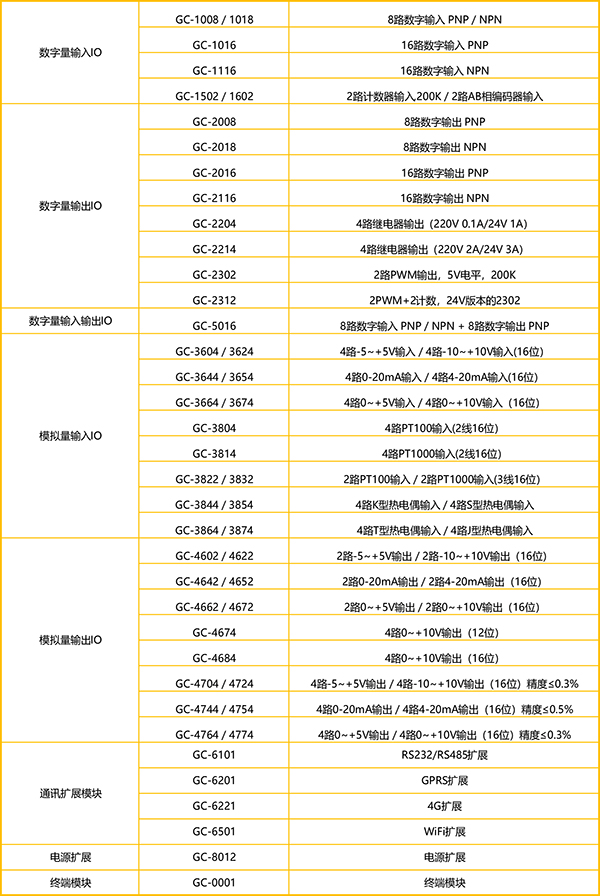

GC-3864模块是集成4路温度传感器（T型热电偶）输入通道的I/O模块。该模块可用于实时采集温度信息，并将采集到的数值通过内部总线发送给GCAN-PLC-3/4/5系列主控模块或GCAN-8X00系列耦合器。该模块可与其他任何GC系列IO模块搭配使用，实现工业自动化或分布式控制系统中模拟量数据的采集与处理。
The GC-3864 module is an I/O module that integrates four input channels of temperature sensors (T-type thermocouples). This module can be used to collect real-time temperature information and send the collected values to the GCAN-PLC-3/4/5 series main control module or GCAN-8X00 series coupler through an internal bus. This module can be used in conjunction with any other GC series IO module to achieve the acquisition and processing of analog data in industrial automation or distributed control systems.

1.2性能特点
1.2 Performance Characteristics

●输入点数为4个；
● Input 4 points;
●接线形式采用2线制；
●The wiring form adopts a 2-wire system;
●传感器类型为T型热电偶；
●The sensor type is T-shaped thermocouple;
●测量温度范围为-200~+350℃；
●The measurement temperature range is -200~+350 ℃;
●测量分辨率为1℃/数位；
●The measurement resolution is 1 ℃/digit;
●精度：±0.1℃；
●Accuracy: ± 0.1 ℃;
●误差（25℃）：±2℃；
●Error (25 ℃): ± 2 ℃;
●转换时间约为250ms；
●The conversion time is about 250ms;
●测量电流流小于0.5 mA（取决于负载）;
●Measure current flow less than 0.5 mA (depending on load);
●电气隔离为500 Vrms；
●Electrical isolation is 500 Vrms;
●通过GCAN-PLC-3/4/5系列PLC主控模块或GCAN-8X00系列耦合器供电；
●Powered by GCAN-PLC-3/4/5 series PLC main control module or GCAN-8X00 series coupler;
●过程映像中的位宽输入为4 x 2字节；
●The bit width input in the process image is 4 x 2 bytes;
●组态无地址设置，通过总线耦合器或控制器配置；
●Configuration without address setting, configured through bus coupler or controller;
●工作温度范围：-40℃~+85℃；
●Working temperature range: -40 ℃~+85 ℃;
●尺寸：长100mm*宽69mm*高12mm。
●Size: Length 100mm * Width 69mm * Height 12mm.

1.3典型应用
1.3 Typical Applications

●将T型热电偶接入总线耦合器或控制器。
●Connect the T-type thermocouple to the bus coupler or controller.

GC-3864设备使用手册链接
GC-3864 Equipment User Manual Link

www.gcgd.net/filedownload/2977845
